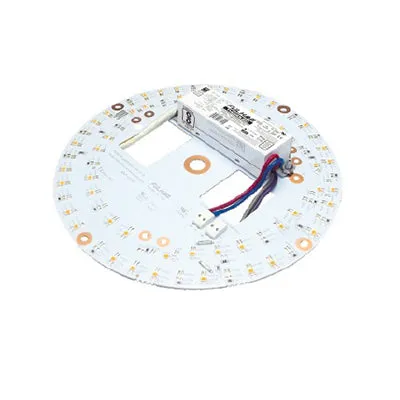

Advantage Environmental Lighting 120VAC / Universal Input Round LED DC Engines and LED DC Engine Retrofit Kits
Features
- Universal Voltage (120~277) DC Engine
- CCT Selectable: 2700K, 3000K, 3500K, 4000K, 4500K, 5000K
- CRI90 standard
- Potassium Fluorosilicate (PFS) phosphor LEDs to achieve as high efficacy as today’s CRI80 LEDs
- Suitable for open or fully enclosed luminaires
- Suitable for luminaires with plastic and glass lenses
- cULus Classified 1598C
- cULus Recognized 8750
- Energy Star Luminaire 2.2 Listed and CSD
Specification
| Input Voltage | 120~277VAC ( /- 10%) |
| Input Current |
|
| Input Power | 10W,14.5W, 21W, 29.5W |
| Input PF | >0.98 |
| THD | <20% |
| Input Frequency | 50/60Hz |
| Module Operating Voltage | 10W: 22.2VDC, 14.5W: 33.4VDC, 21W: 23.1VDC, 29.5W:35.6VDC |
| Max Lumen Output @ Full Power | 10W - 1400lm, 14.5W - 2160lm, 21W - 2650lm, 29.5W - 3730lm @ 4000K/90CRI |
| Dimming Type/Range | 0-10V / 100% ~ 10% |
| Beam Angle | 120° |
| CRI | CRI (Ra)>=90 / R9>=50 / TM-30 R >=85 / TM-30 R >=100 |
| Storage Temperature Range | -35°C to 100°C / -31°F to 212°F |
| Operating Ambient Temperature Range (Ta) | -35°C to 60°C / -31°F to 140°F |
| Maximum Driver Case Temperature: per UL/ 5 year warranty | 90°C (194°F) / 80°C (176°F) |
| Maximum Module Case Temperature | Safety: 105°C(221°F)/ L70(>60Khrs): 105°C(221°F)/ L90(36Khrs): 96°C(204.8°F) |
| Estimated Lumen Maintenance (at Max Tc | L70= >60,000 hours @ Tc max 105°C / L90= 36,000 hours @ Tc max 96°C |
| Color Consistency | Binning per ANSI C78.377-2015 @25°C; Typ. 3 SDCM, Max. 5 SDCM |
| Inrush Current / Duration |
|
| Line Regulation / Load Regulation | <1% @100% Load / <3% @100% Load |
| Total Overall Ripple LF (<300Hz)/ HF(<40kHz) peak to peak | <5% @100% Load |
| Low Frequency Ripple (120Hz ripple peak to peak) | <5% @100% Load |
| Flicker Percentage |
|
| Start-up Time / Standby Power | <500ms / <1W No Load |

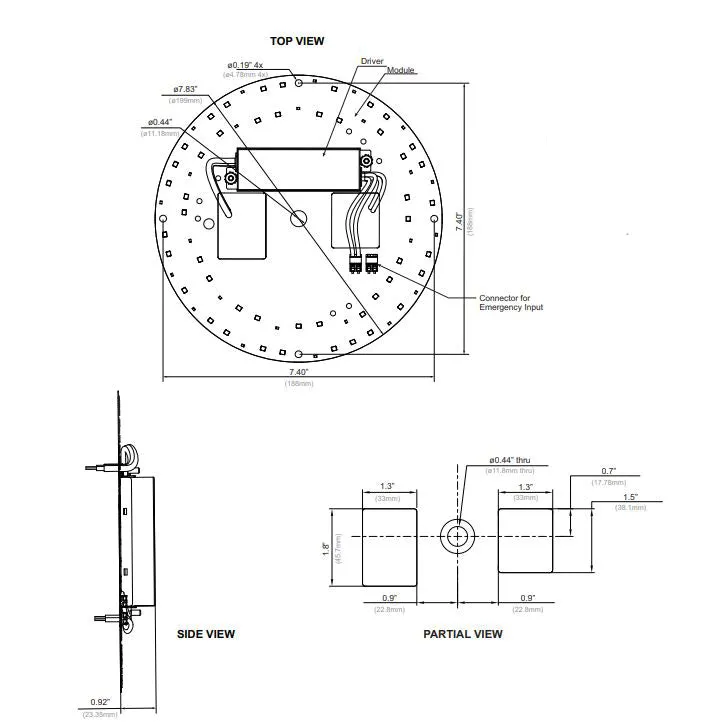

| Overall Size | 10W/14.5W: 7.83"Dia. x 0.92"H 21W/29.5W: 7.83"Dia. x 1.18"H |
| Wire Type/ Length |
|
| LED Quantity | 48pcs. CW 48pcs. WW |
| Driver Part Number | T1M1UNV0350-15L |
| Module Part Number | VMU095023RD9TWA |
| Weight | 320g / 0.71lbs. |
| Maximum Screw Installation Torque | 35in-lb (560in-ozf) |
| Safety/Compliance |
|
| RFI/EMI | FCC Part 15B Consumer, EN55015 |
| Input Surge Test | 2.5kV Common and Differential mode (Per ES Ring Wave Test) |
| Sound Rating / Noise | A / <24 dBA |
| Output Type | Class 2 (approved for luminaires glass or plastic lenses) |
| PCB Material / Connector Qty / Em. Connection | CEM1 / 2 / Yes |
| Warranty | 5 years @ Max. Tc 105°C (module) and 80°C (Driver) from the date of manufacture |
