DESCRIPTION

RC522 Chip:

The MF RC522 is a highly integrated read and write 13.56MHz contactless communication card chip developed by NXP. It is designed for low-voltage, low-cost applications and is ideal for smart meters and portable handheld devices. The MF RC522 supports various 13.56MHz passive contactless communication methods and protocols, including ISO14443A. It can handle data at a transmission rate of up to 424kbit/s and supports the CRYPTO1 encryption algorithm for secure communication.

RFID Module:

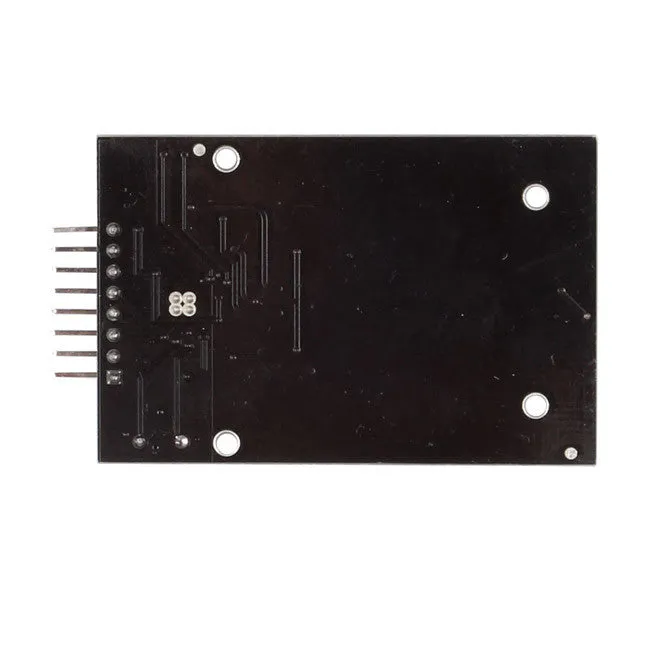

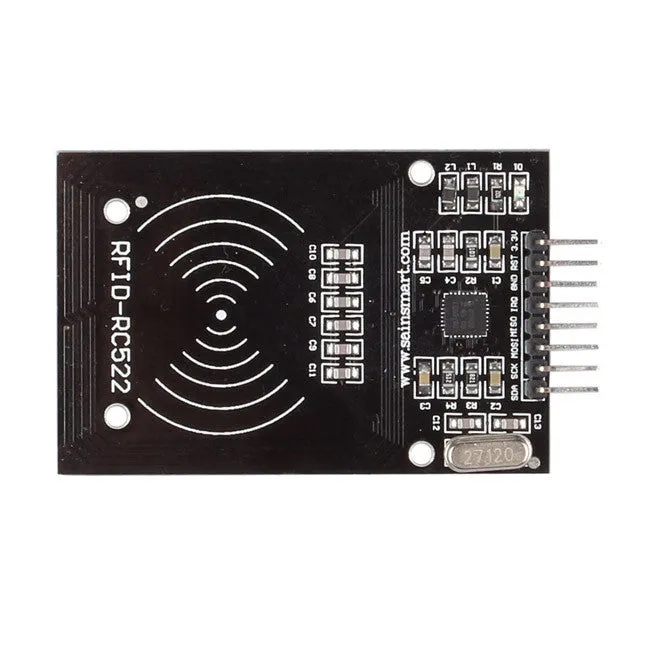

The MF522-AN module is based on the original Philips MFRC522 chip and is designed for easy use and low cost. It connects to user equipment development for advanced applications. This module operates at 3.3V and communicates via SPI, ensuring stable and reliable performance.

SPECIFICATION

• Working current: 13-26mA/DC 3.3V
• Idle current: 10-13mA/DC 3.3V
• Sleep current: <80µA
• Peak current: <30mA
• Operating Frequency: 13.56MHz
• Supported card types: S50, S70 Ultralight, Pro, DESFire
• Product size: 40mm × 60mm
• Operating temperature: -20°C to 80°C
• Storage temperature: -40°C to 85°C
• Relative humidity: 5% - 95%
• Data transfer rate: maximum 10Mbit/s

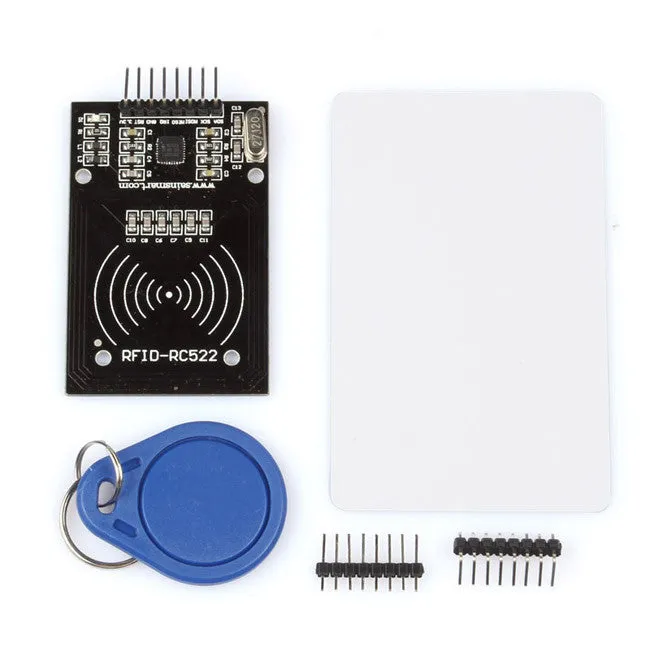

WHAT'S IN THE PACKAGE

• 1x SainSmart RFID-RC522 module
• 1x Standard S50 blank IC card
• 1x S50 special-shaped card (key ring shape)
• 1x Straight and curved pin headers
