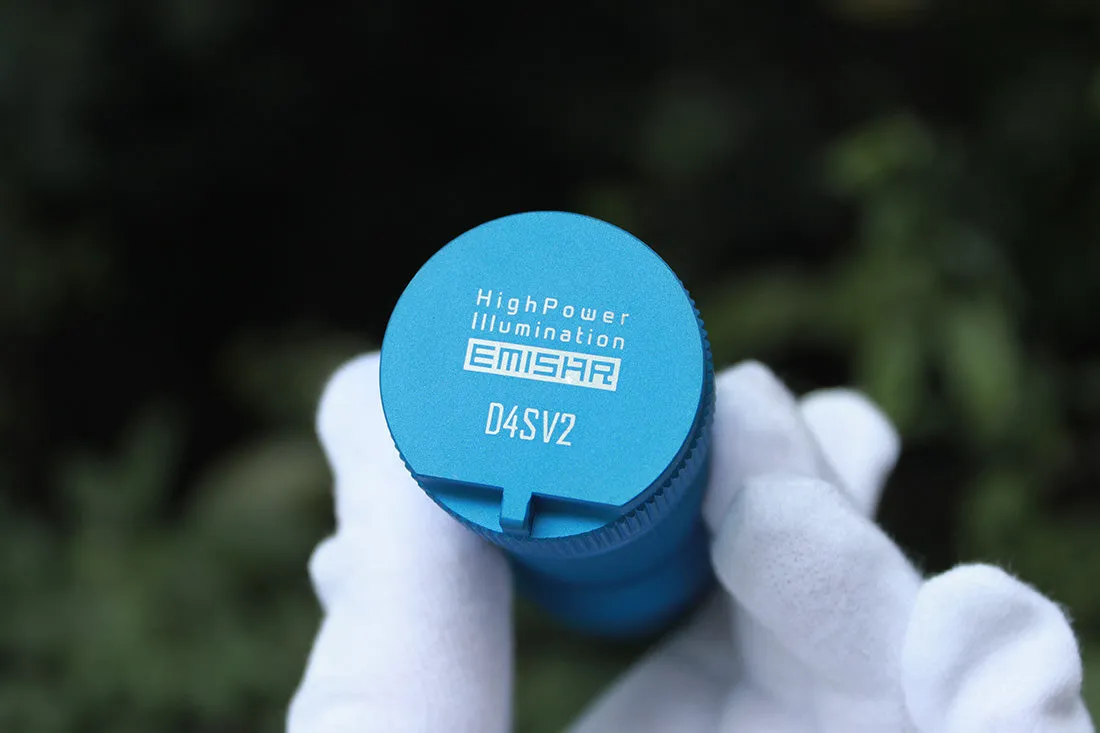

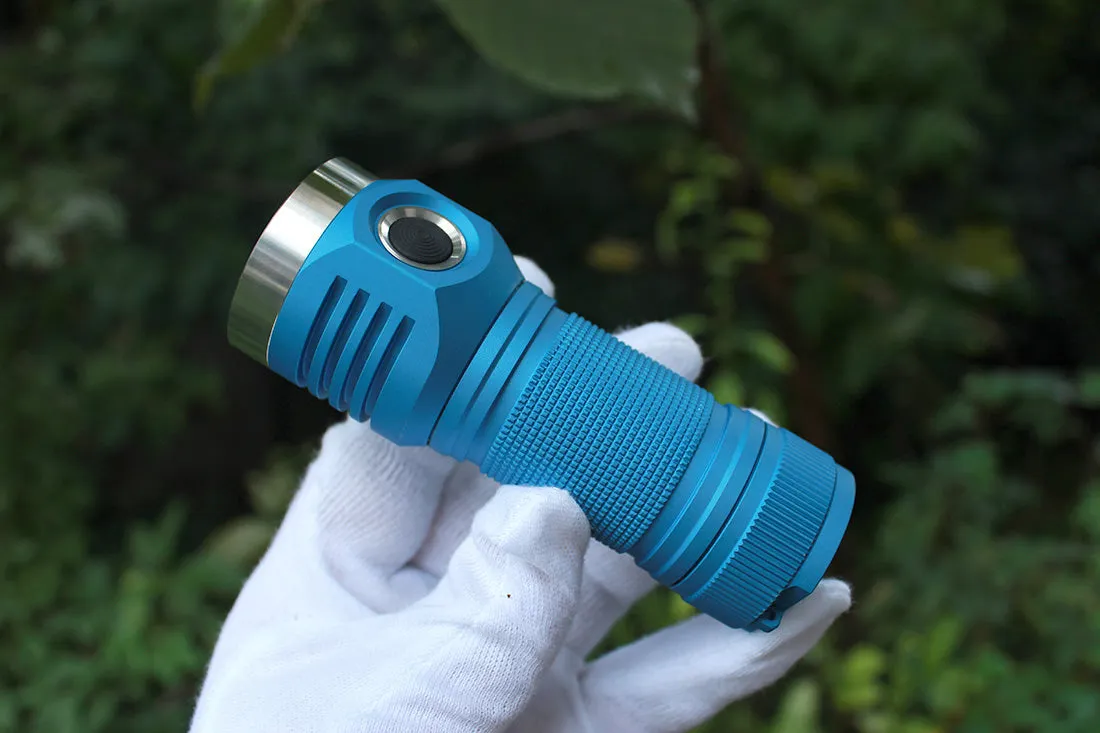

EMISAR D4SV2

NOTE: THIS IS CUSTOM "BUILT-TO-ORDER" WILL SHIPPING ACCORDINGLY!

The boost driver upgrade is available for the quad version of XP-L HI, SST-20, Osram W1/W2, Nichia 219B R9080 versions, each LED receives 2A current. The driver is not compatible with Nichia E21A, Nichia E17A, and mule versions of the flashlight.

Please be noted that the boost driver version will have 40% less output on turbo than the regular version, it is a more efficient driver (90-95%) with longer running time and less heat.

My D4sv2 are built with the lighted switch option by default cost is added to the total price of the D4sv2. Hank doesn't include tbe lighted switch options.



Emisar D4SV2 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.

Works with high drain unprotected 26650 cells under 69mm.

DRIVER:

9A LINEAR FET

$16 12V 2A BOOST DRIVER OPTION (NOT AVAILABLE FOR OSRAM EMITTERS)

USER INTERFACE:

ANDURIL 2 UI

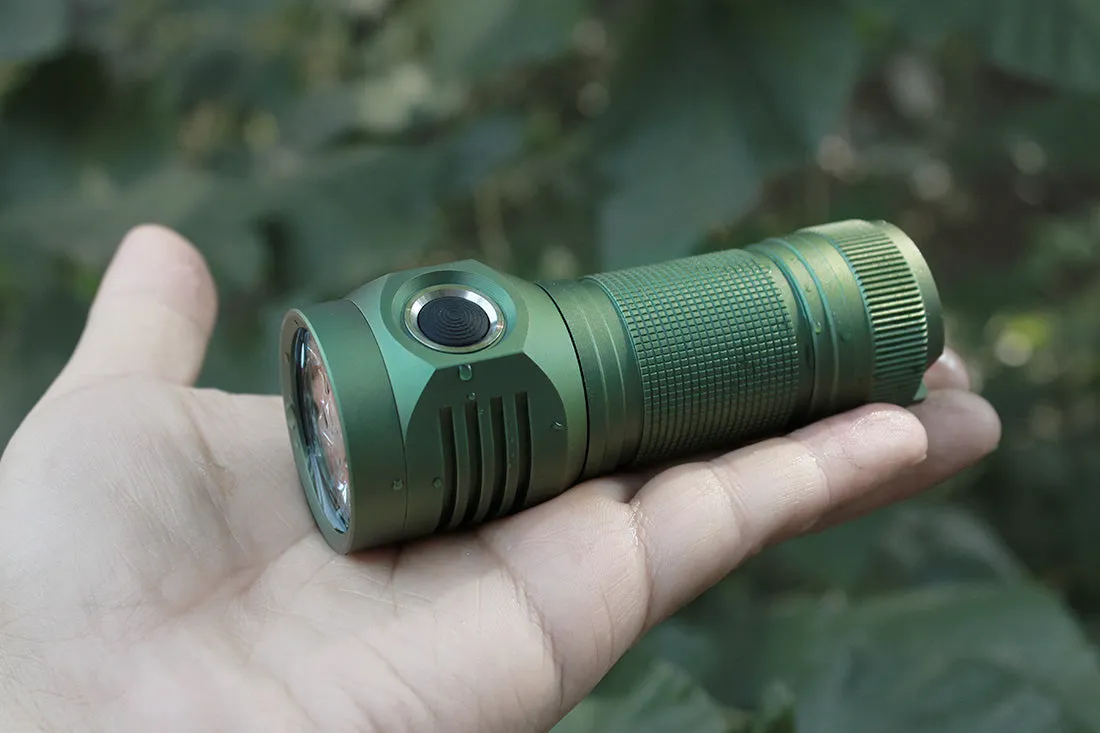

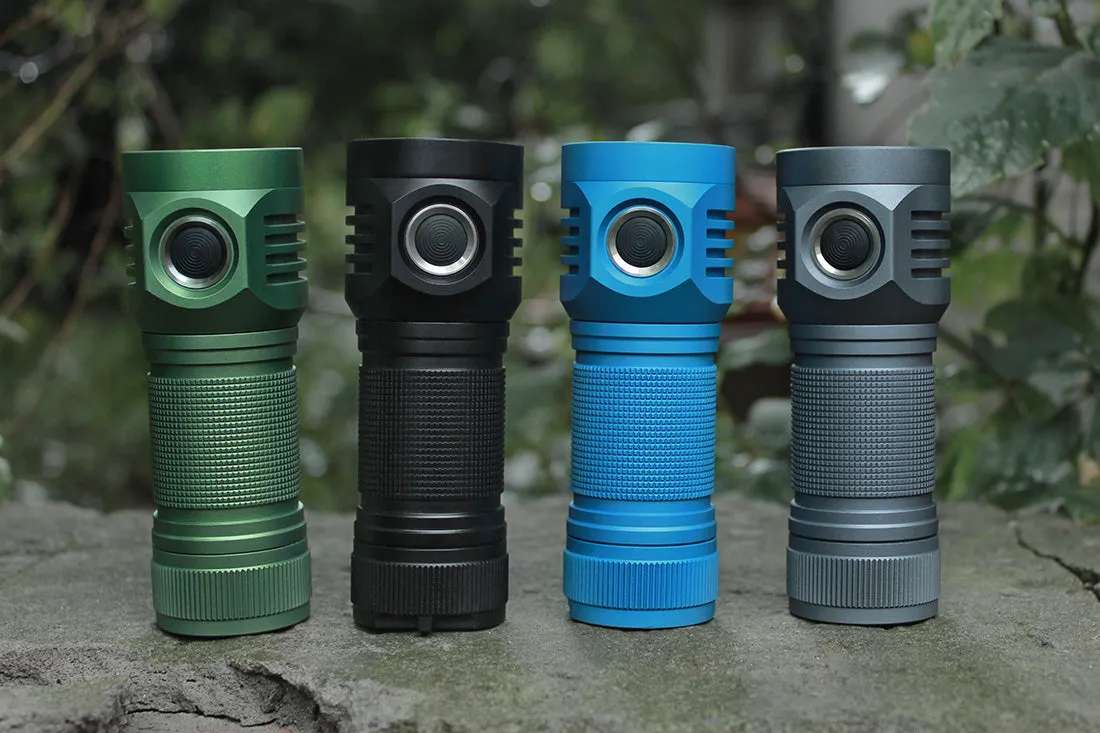

BODY COLORS:

BLACK

GRAY

CYAN

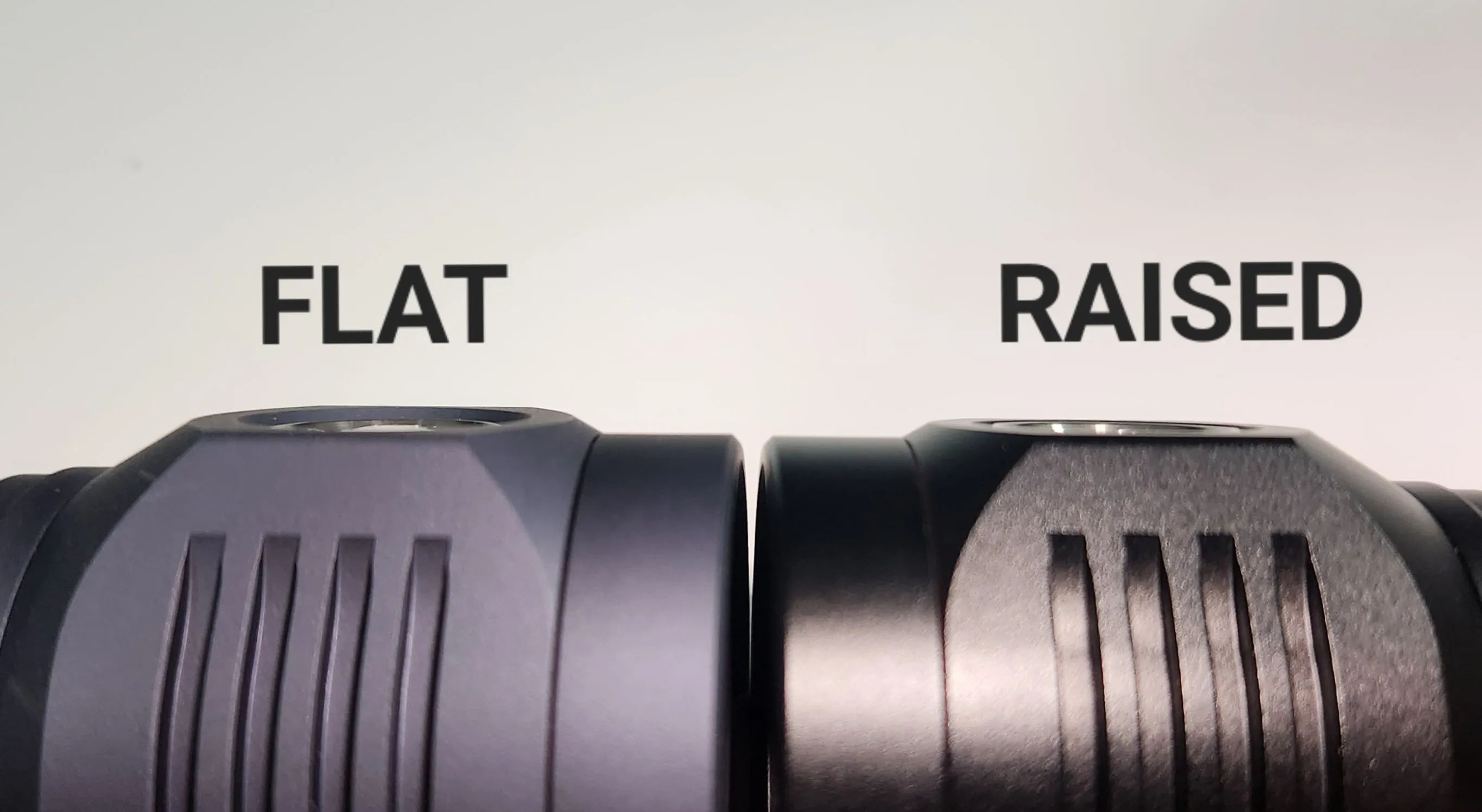

SWITCH RING:

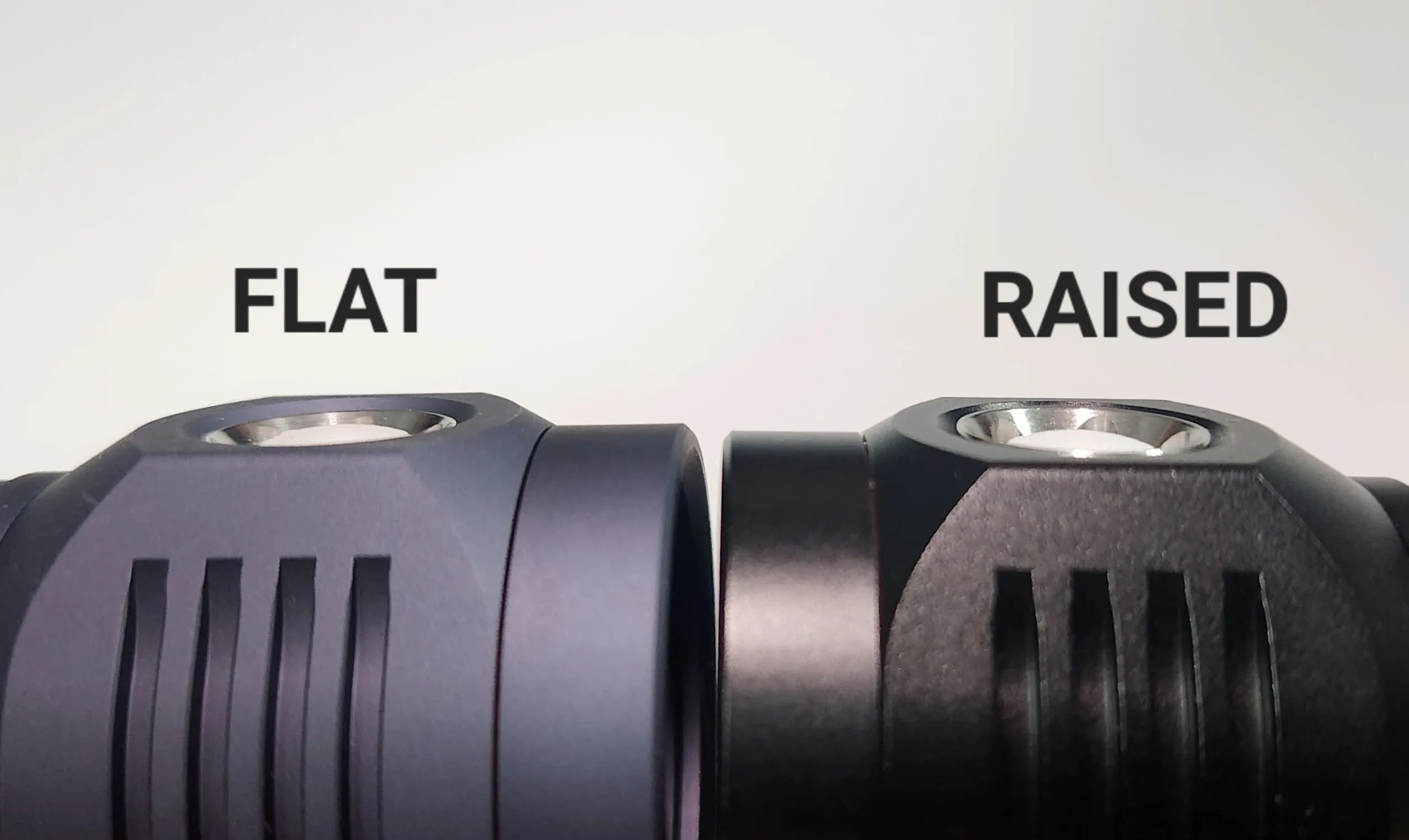

NEW! THREADED FLAT OR RASIED RINGS!

EMITTER OPTIONS:

LUMINUS SFT40 PURCHASE LINK >>>

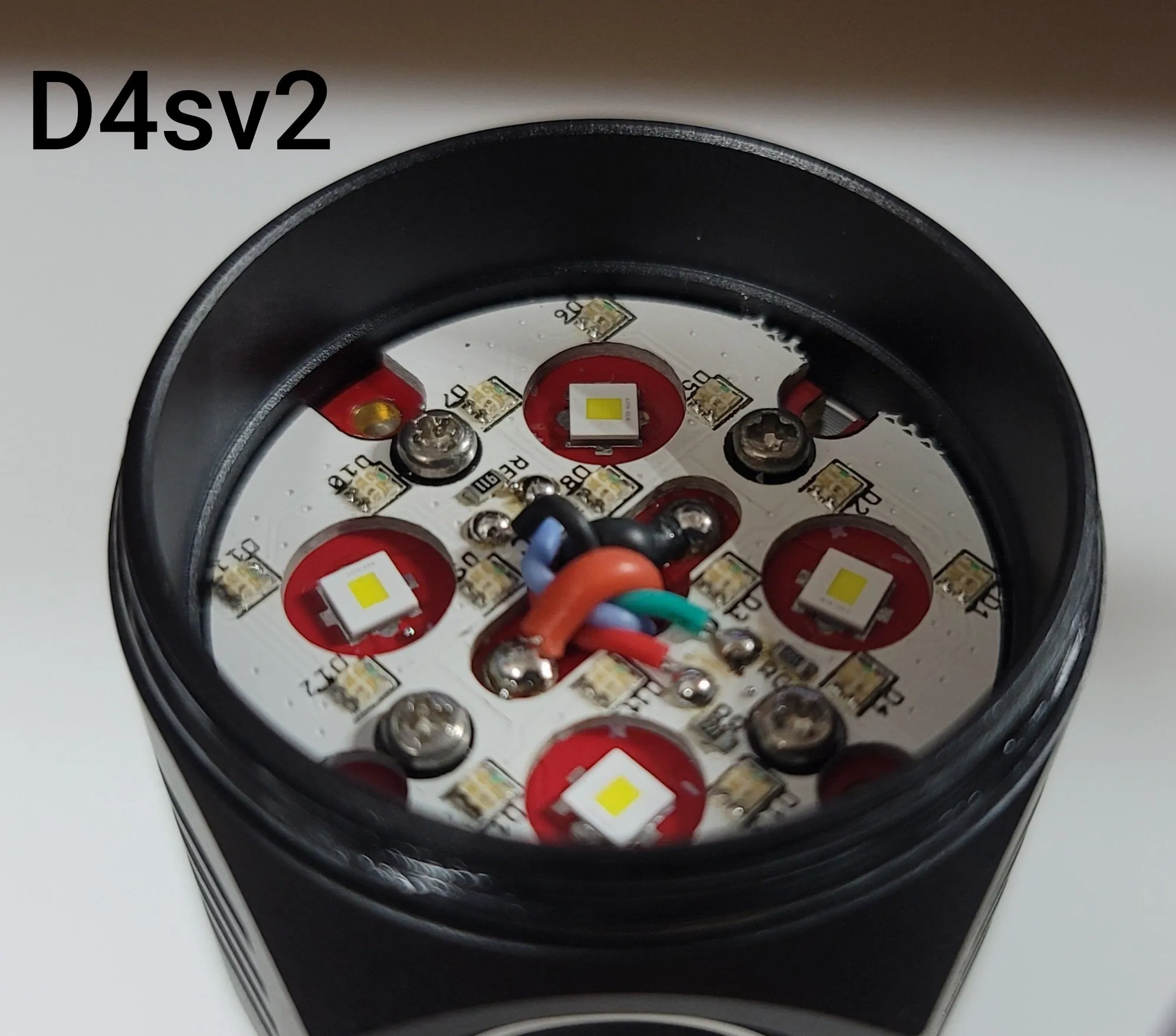

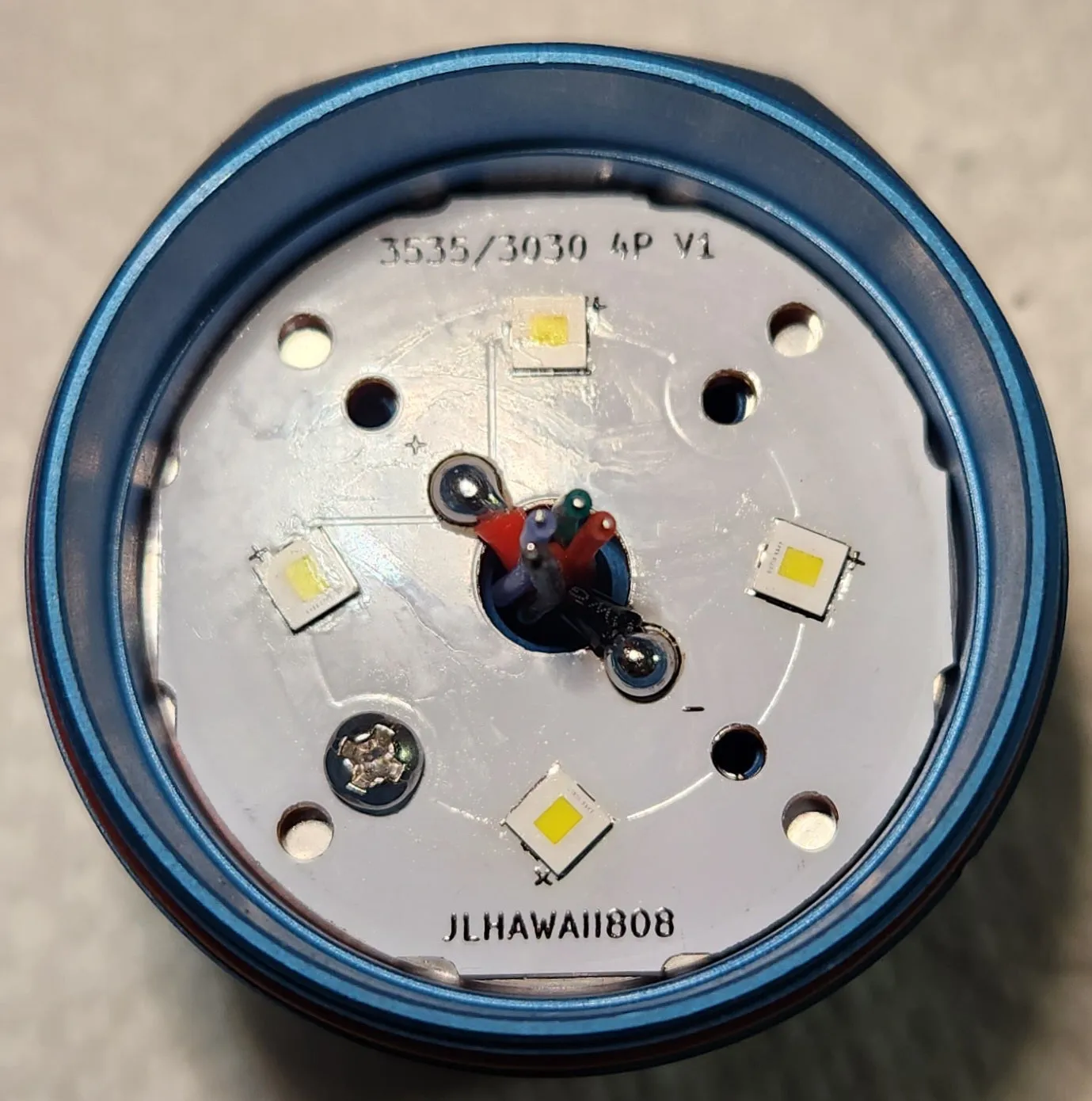

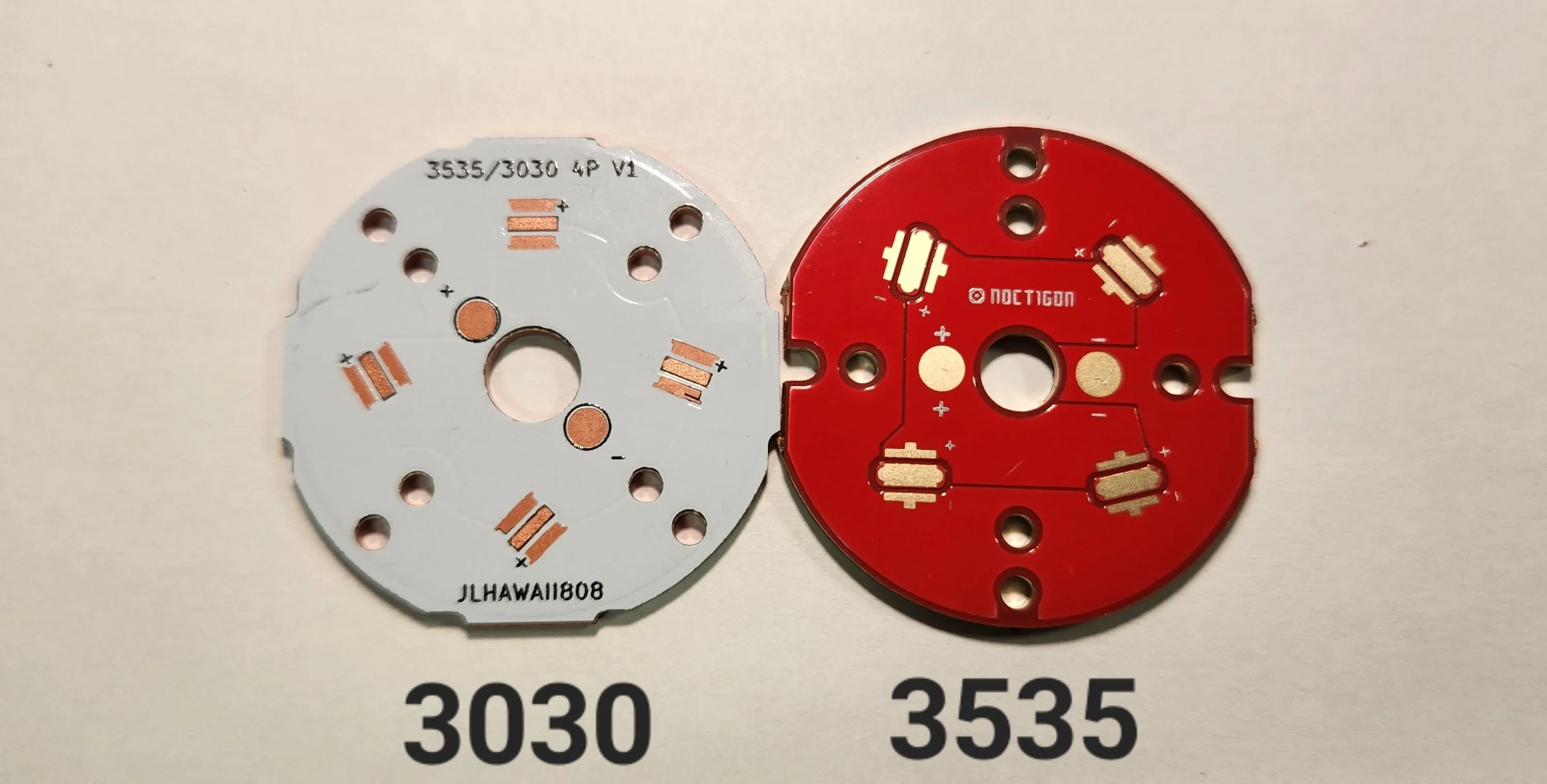

OSRAM W1/W2 (NEW CUSTOM 3030 MCPCB DESIGNED FOR THESE EMITTERS)

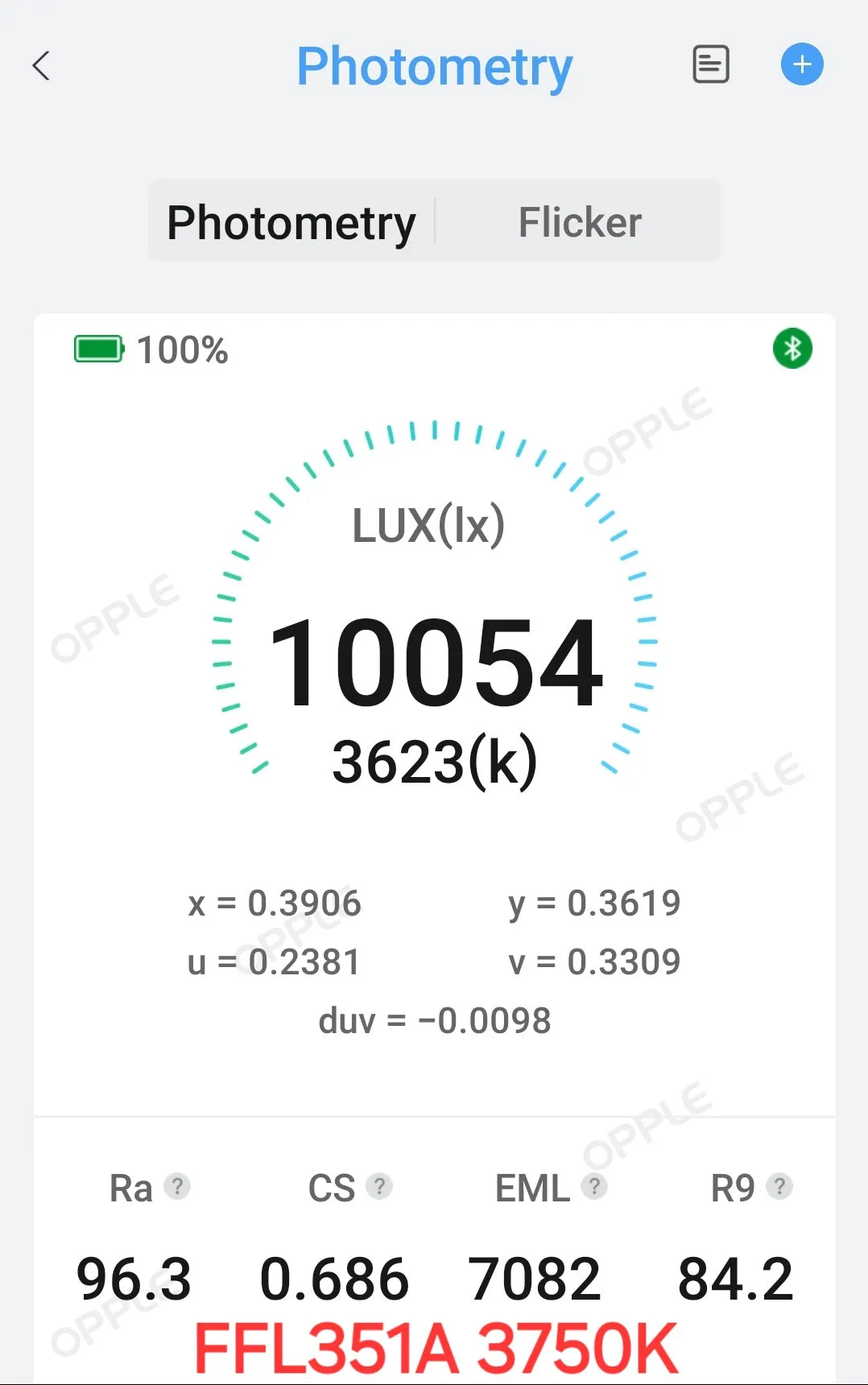

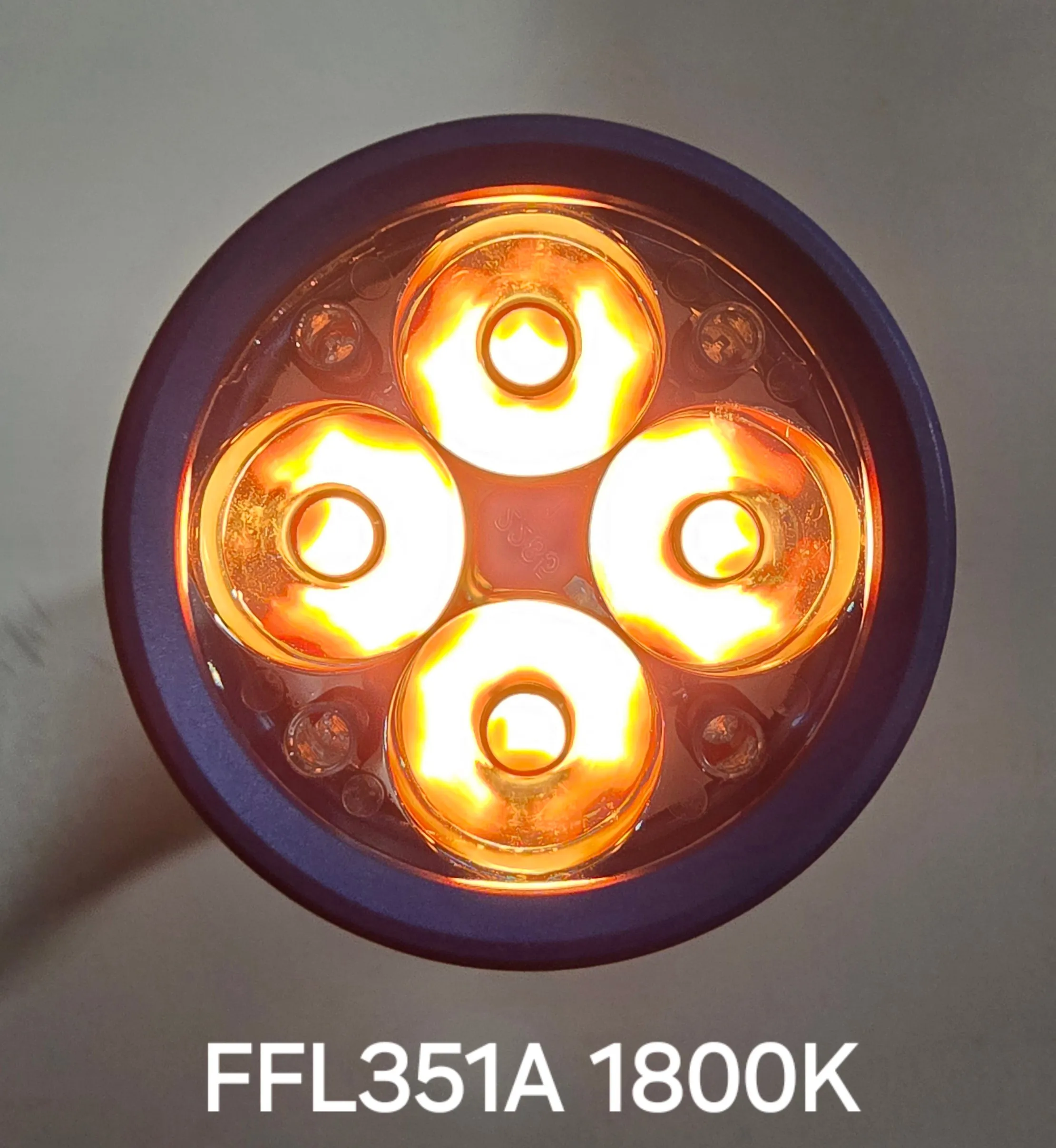

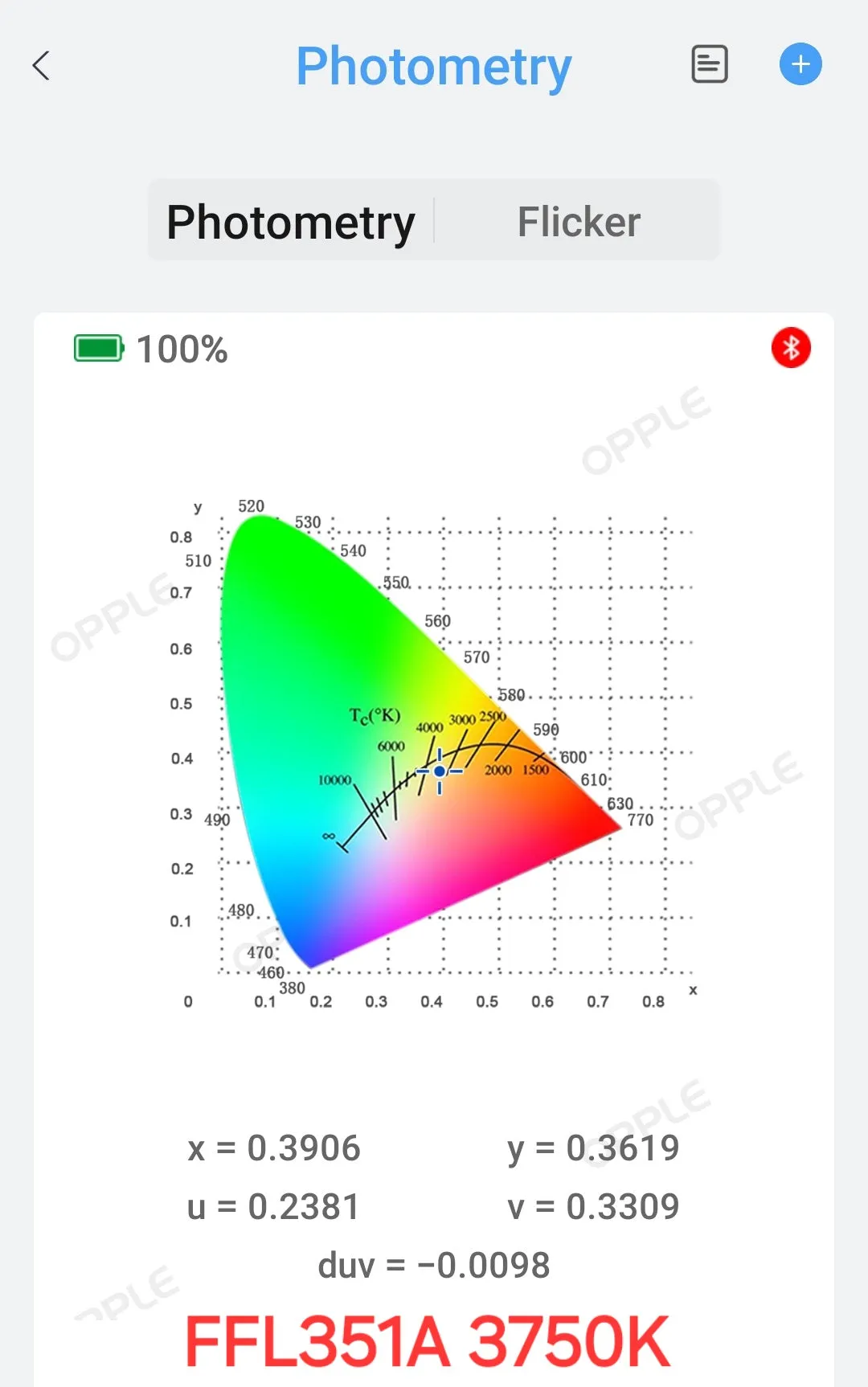

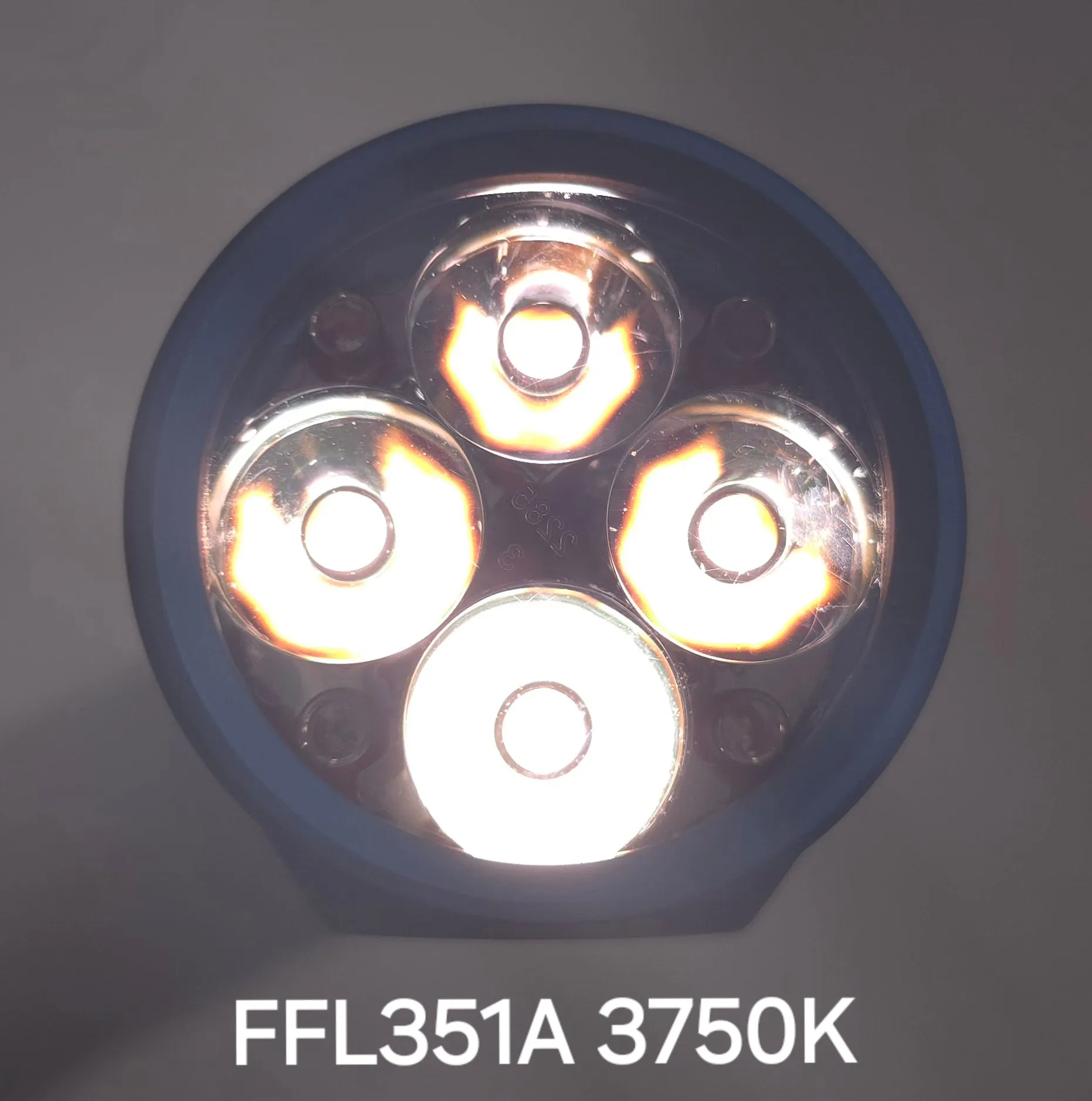

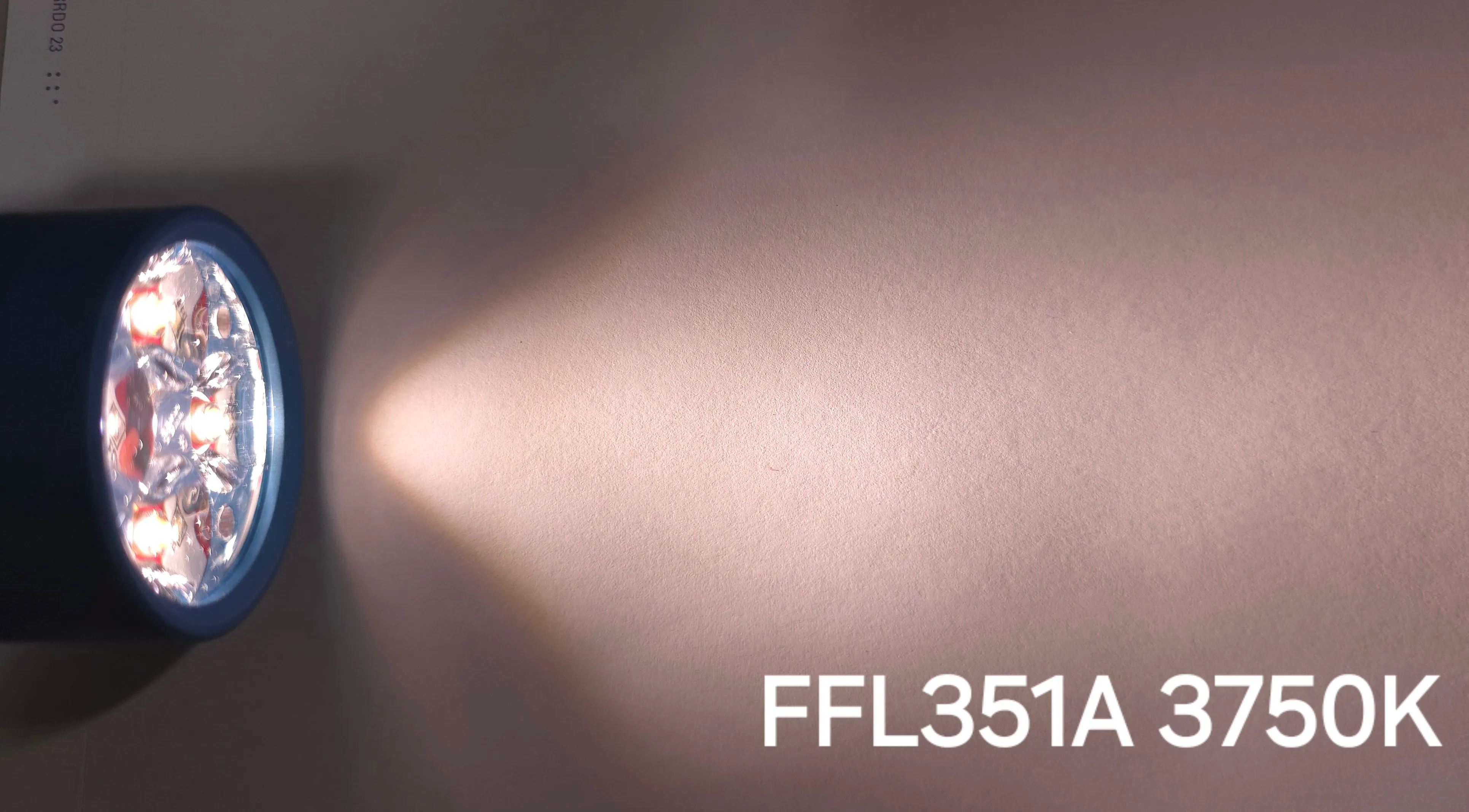

NEW! FF EMITTERS

NICHIA 519A

MORE

INCLUDED OPTIONS:

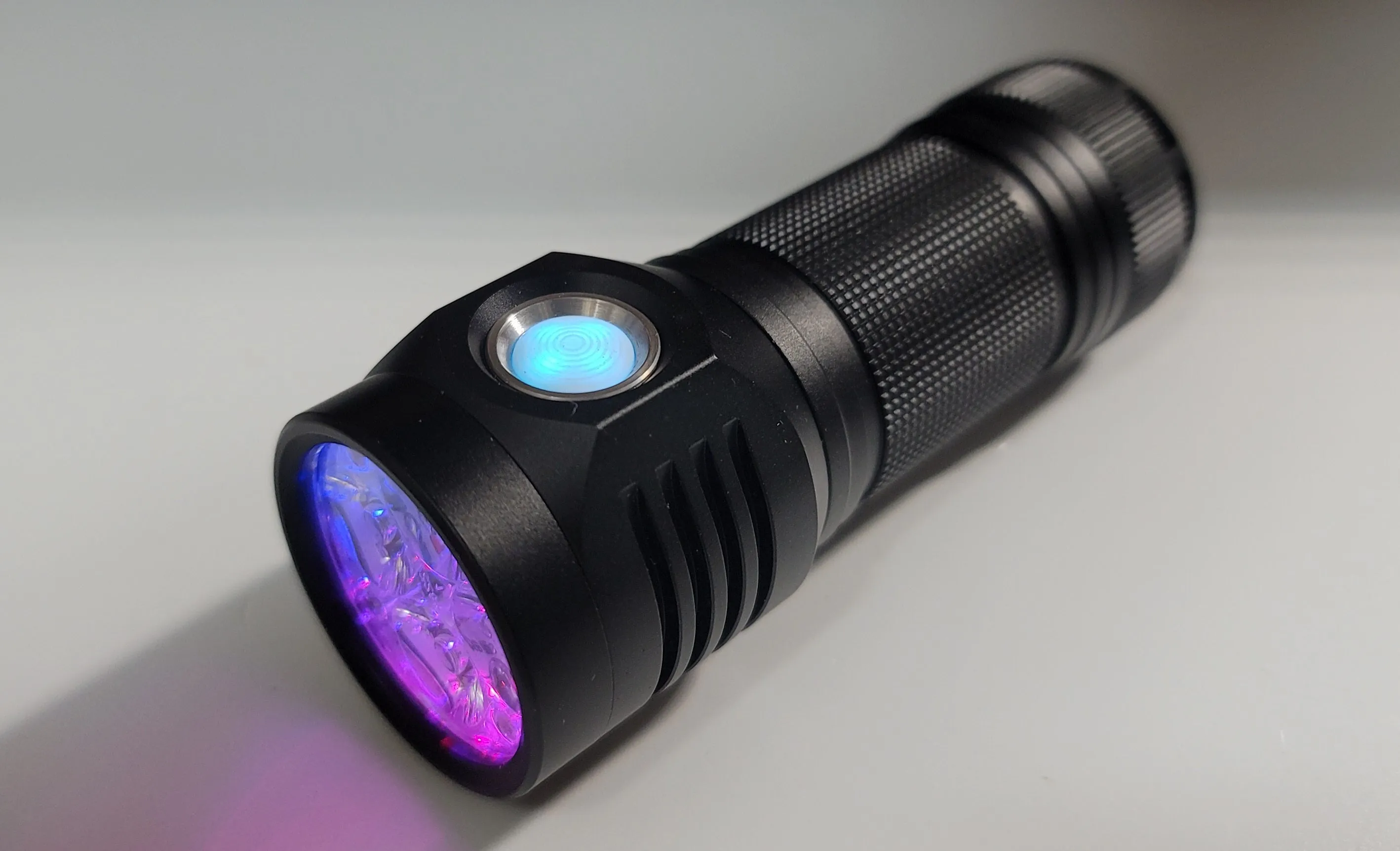

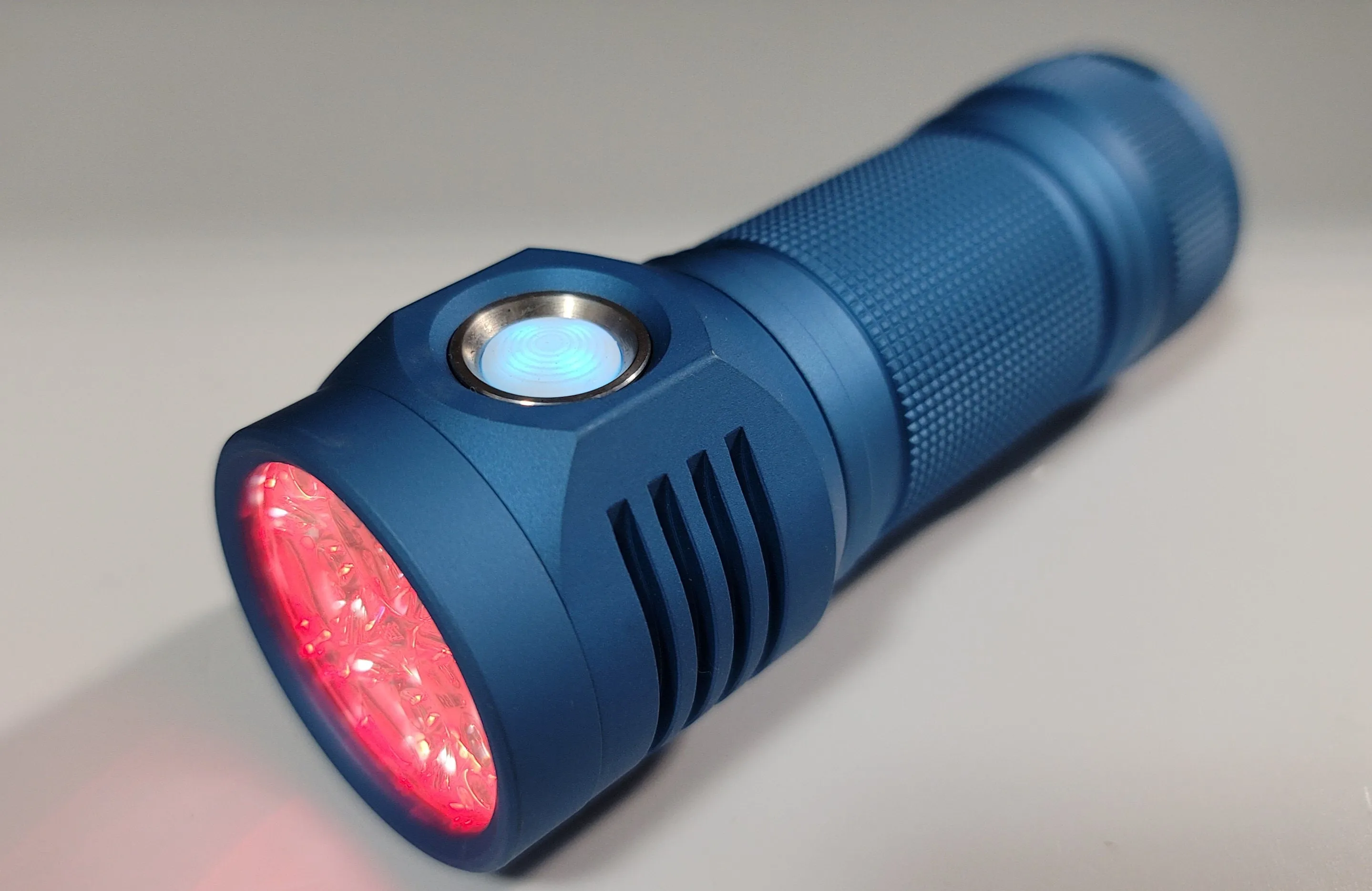

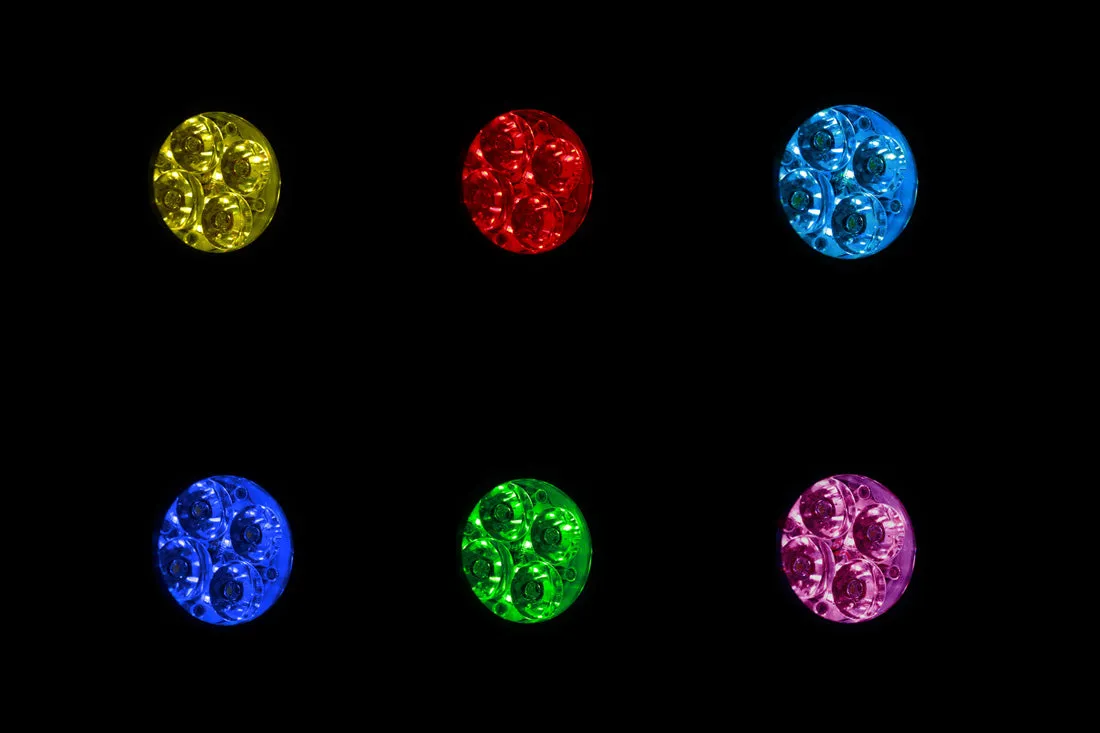

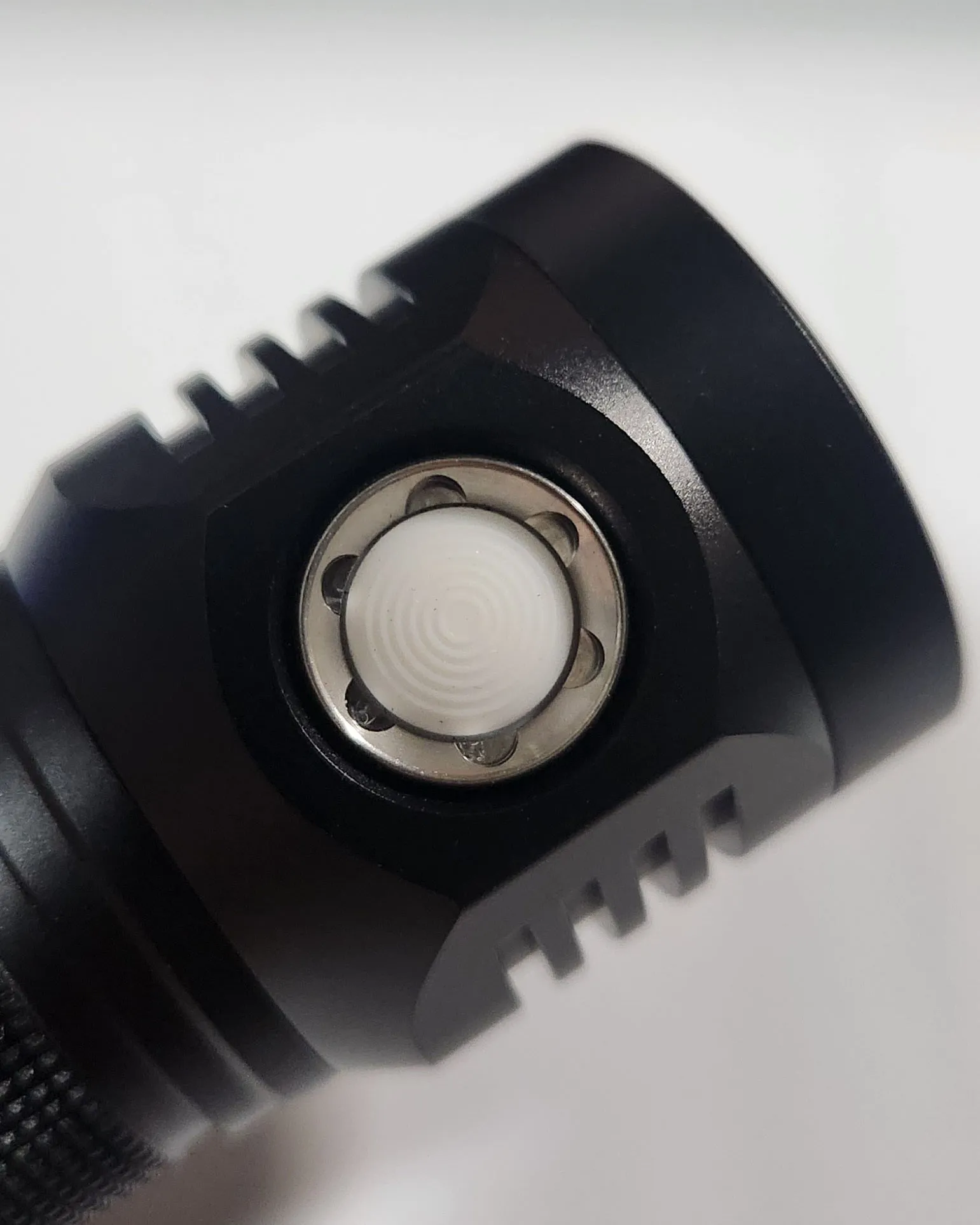

LIGHTED SWITCH OPTION

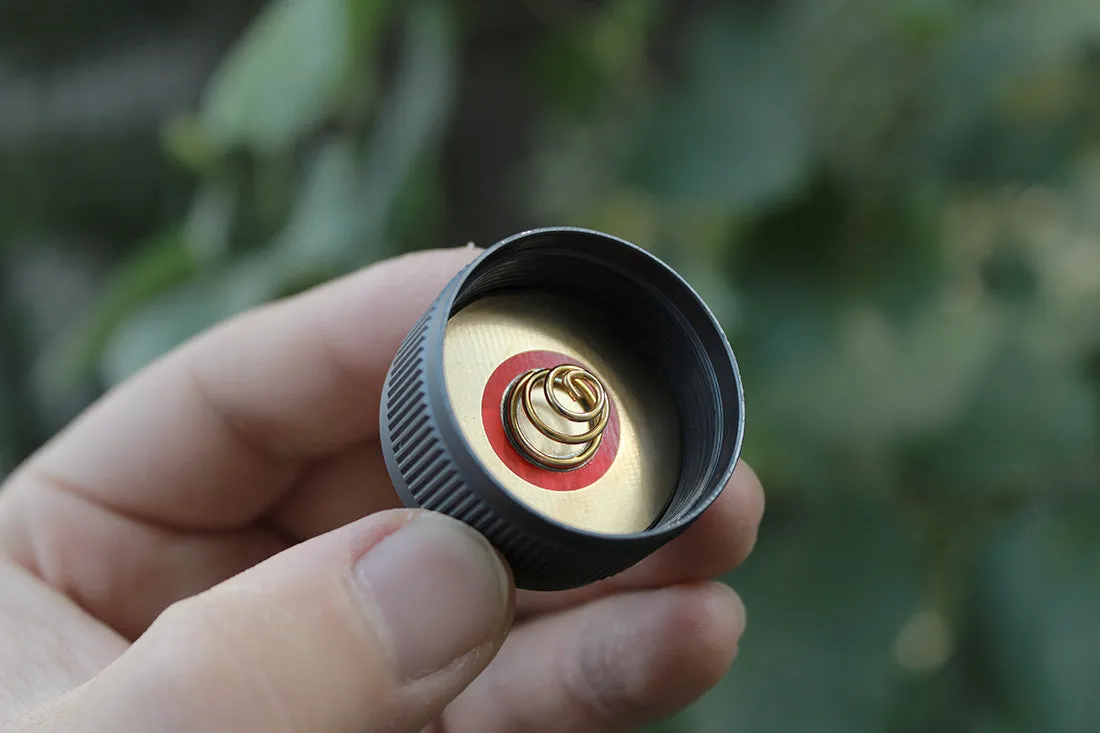

MAGNETIC TAILCAP

LANYARD

EXTRA ORINGS

ANDURIL 2 UI INSTRUCTIONS

SS BEZEL >>>

BATTERY:

26650 high drain unprotected flat top cell recommended min 20A (NOT INCLUDED)

 Features:

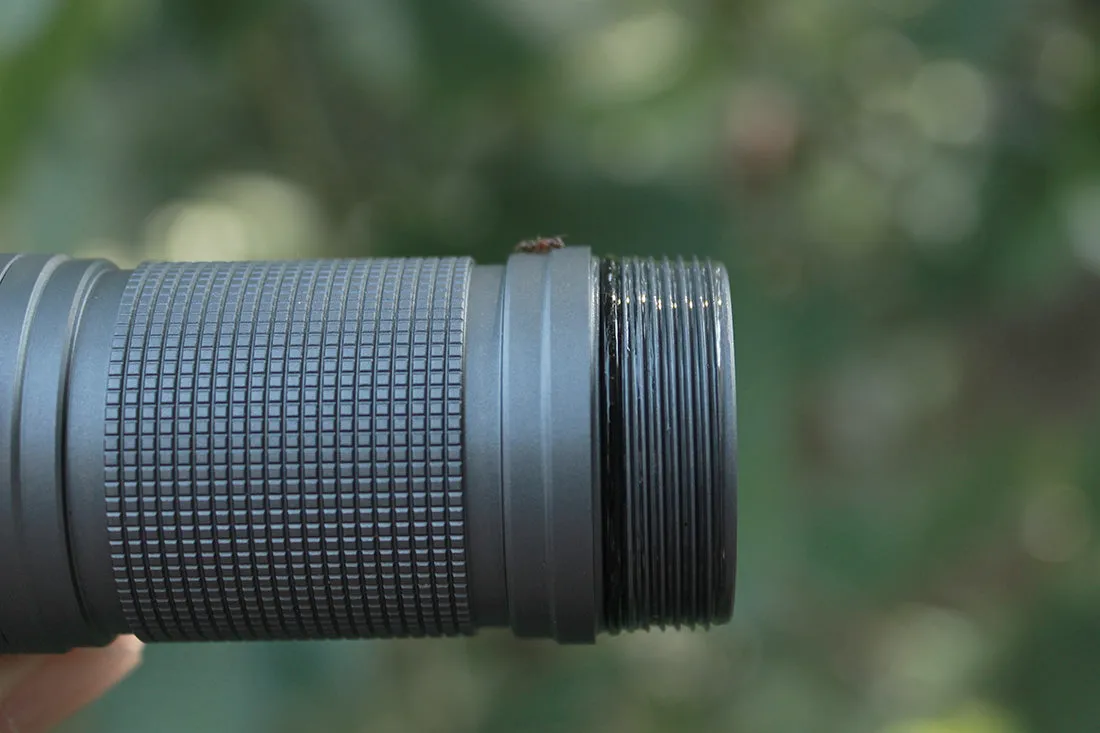

• CNC machined from aircraft-grade aluminum

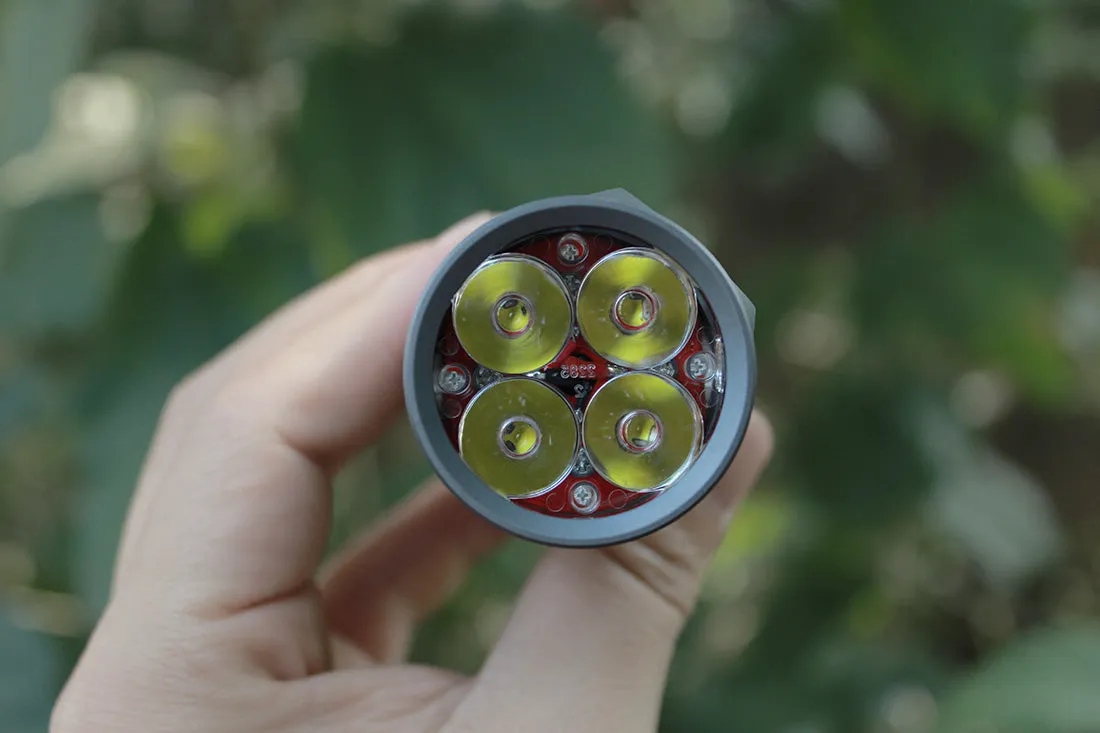

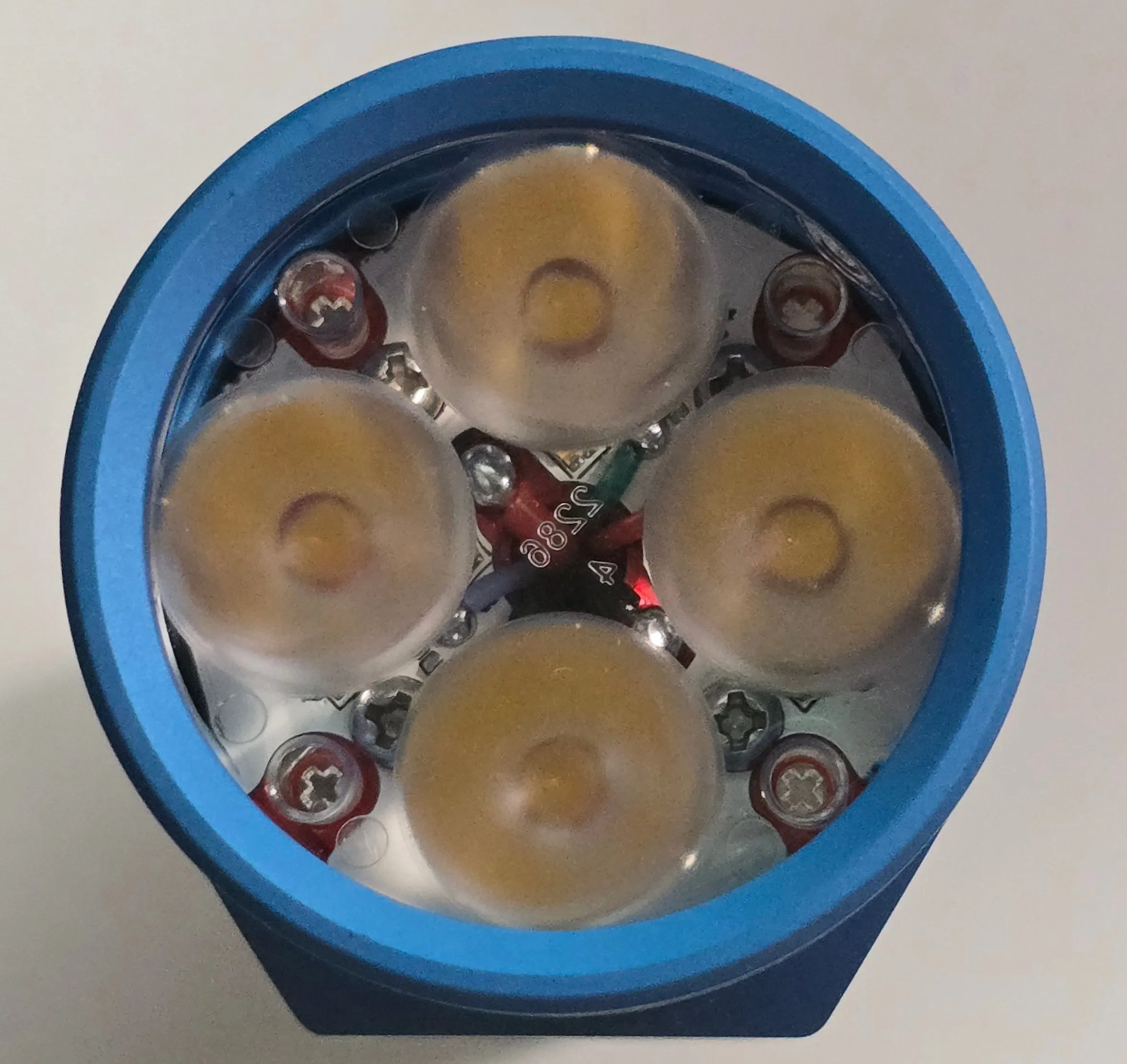

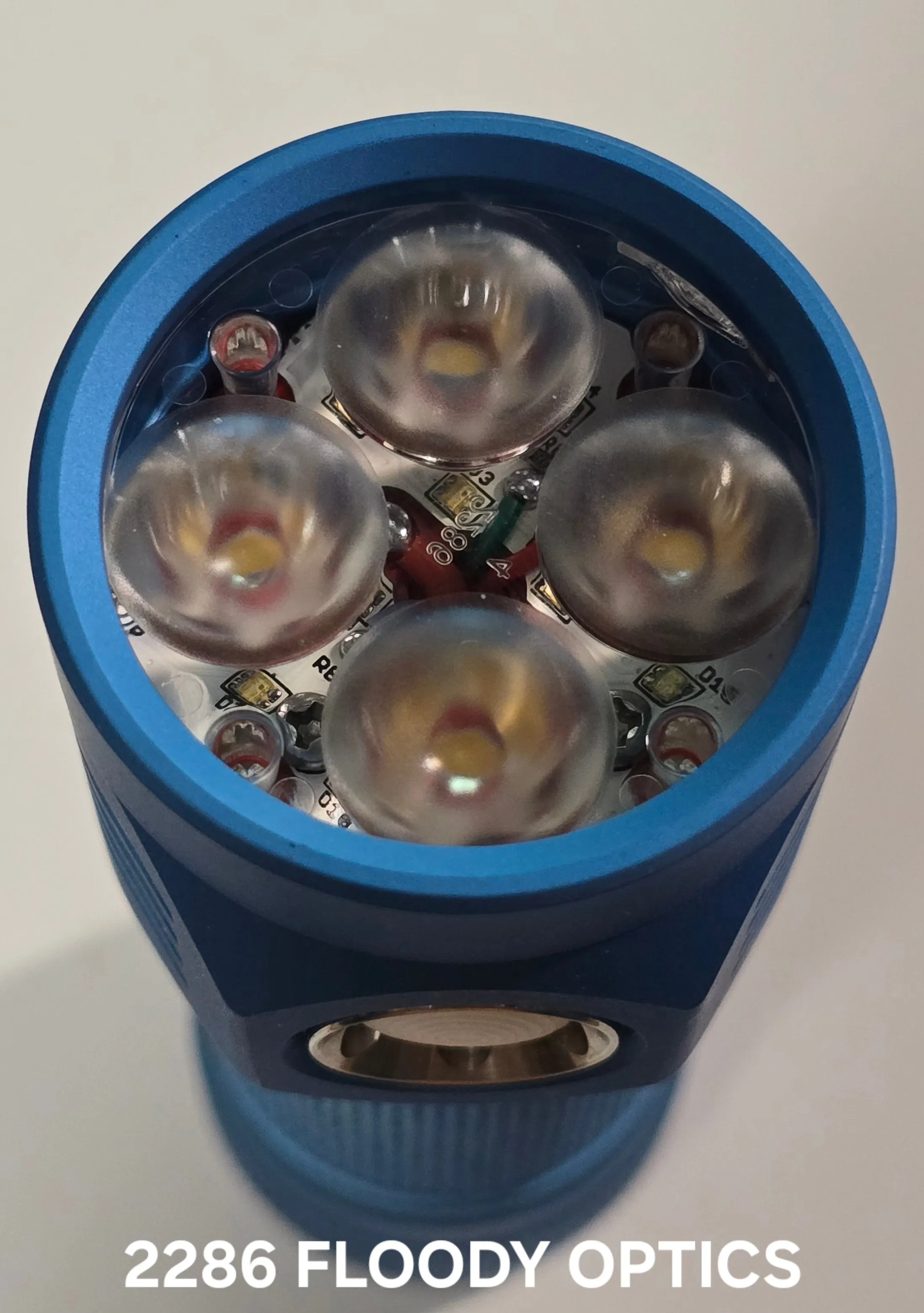

• Efficient LEDiL quad optic

• Double of triple the candela of D4 (depending on LEDs of D4)

• Anti-reflective coated glass lens

• Unihead construction

• High lumen output and low moon output

• Ramping interface

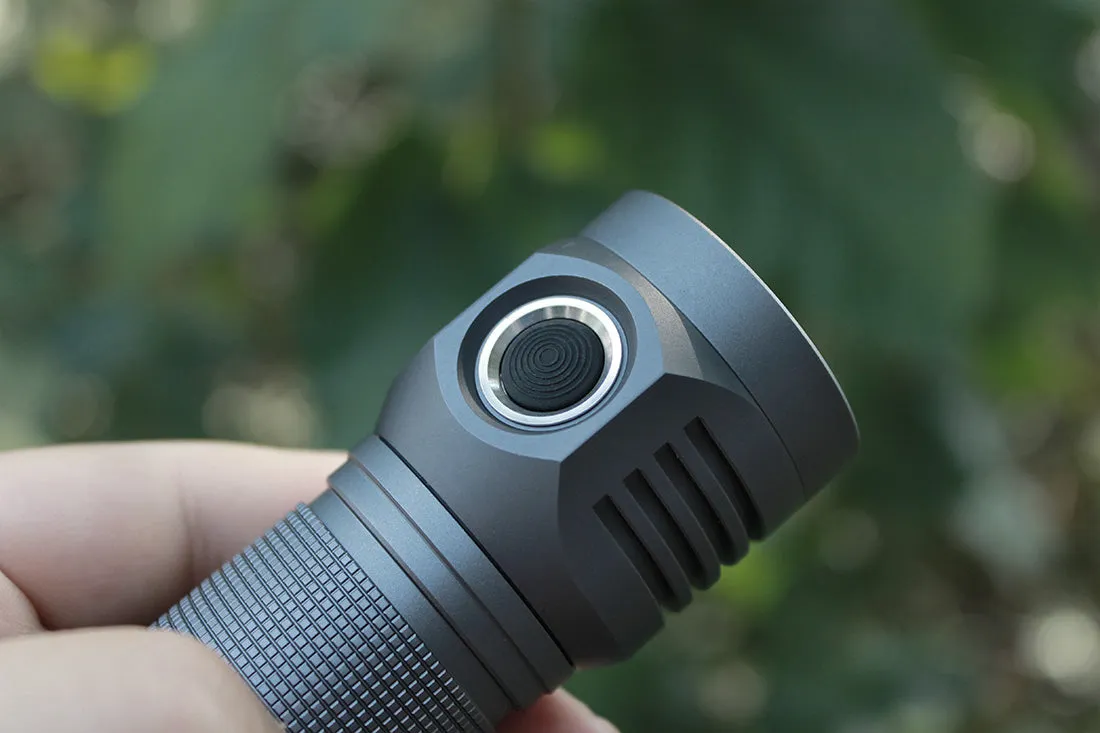

• Electronic soft touch switch

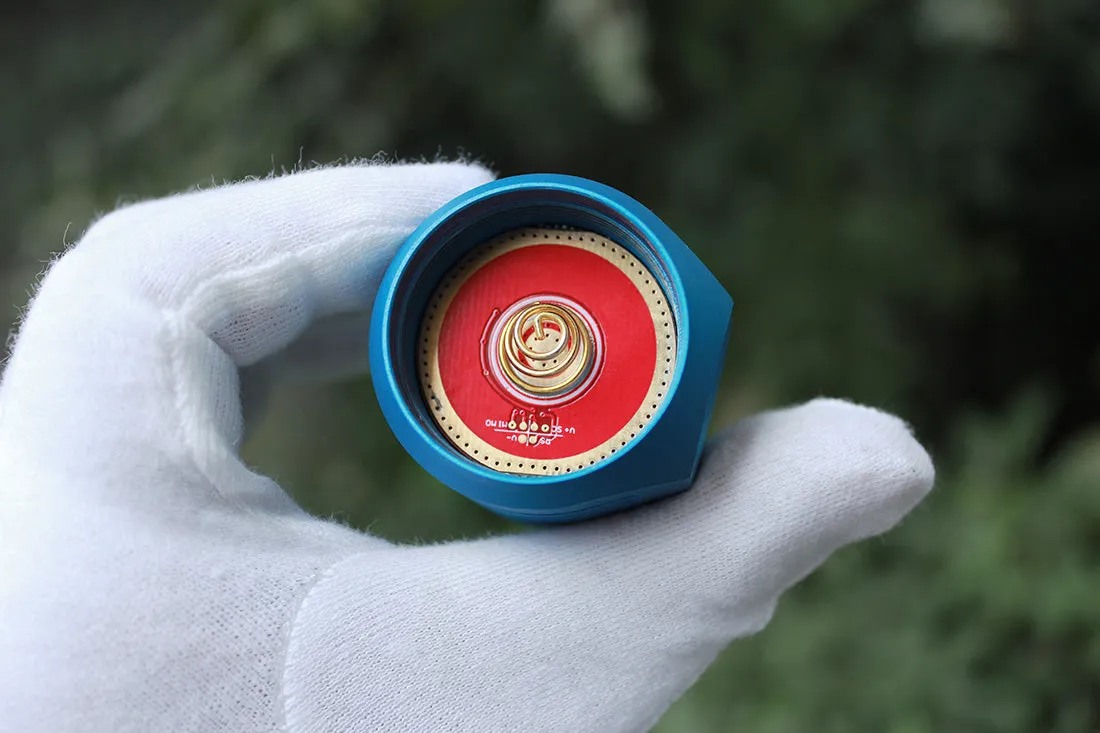

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down • More mass and MCPCB surface compared to D4

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Powered by a high drain 26650 cell (not included)

• Dimensions: 105mm(length) * 39mm(head) * 32mm(body)



OTF lumen output and candela at start-up

XP-G2 S4: 3300lm / 40,000cd

Nichia 219C: 3000lm / 20,000cd

XP-L HI: 4300lm / 45,000cd

XP-L HD: 5100lm / 27,000cd

SST-20 6500K: 4200lm / 58,000cd

SST-20 5000K: 4000lm / 55,000cd

SST-20 4000K/3000K 95CRI: 3000lm / 41,000cd

NICHIA 519A: 3900-4000 LUMENS

OSRAM W1/W1: W2 5000 LUMENS

SFT40: 8000-9000 LUMENS



This product uses free software distributed under the terms of the GPLv3.

Source code is available from
