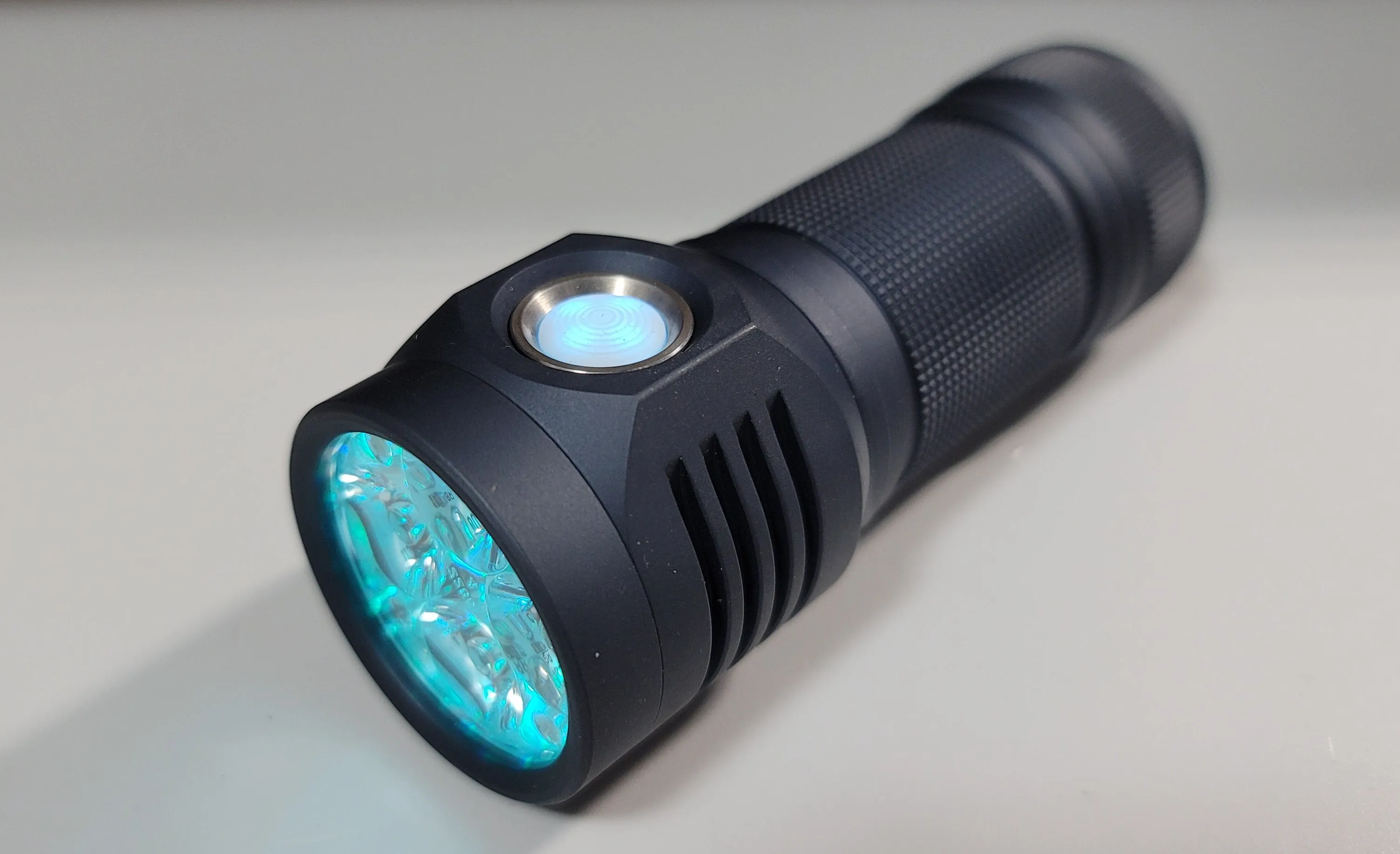

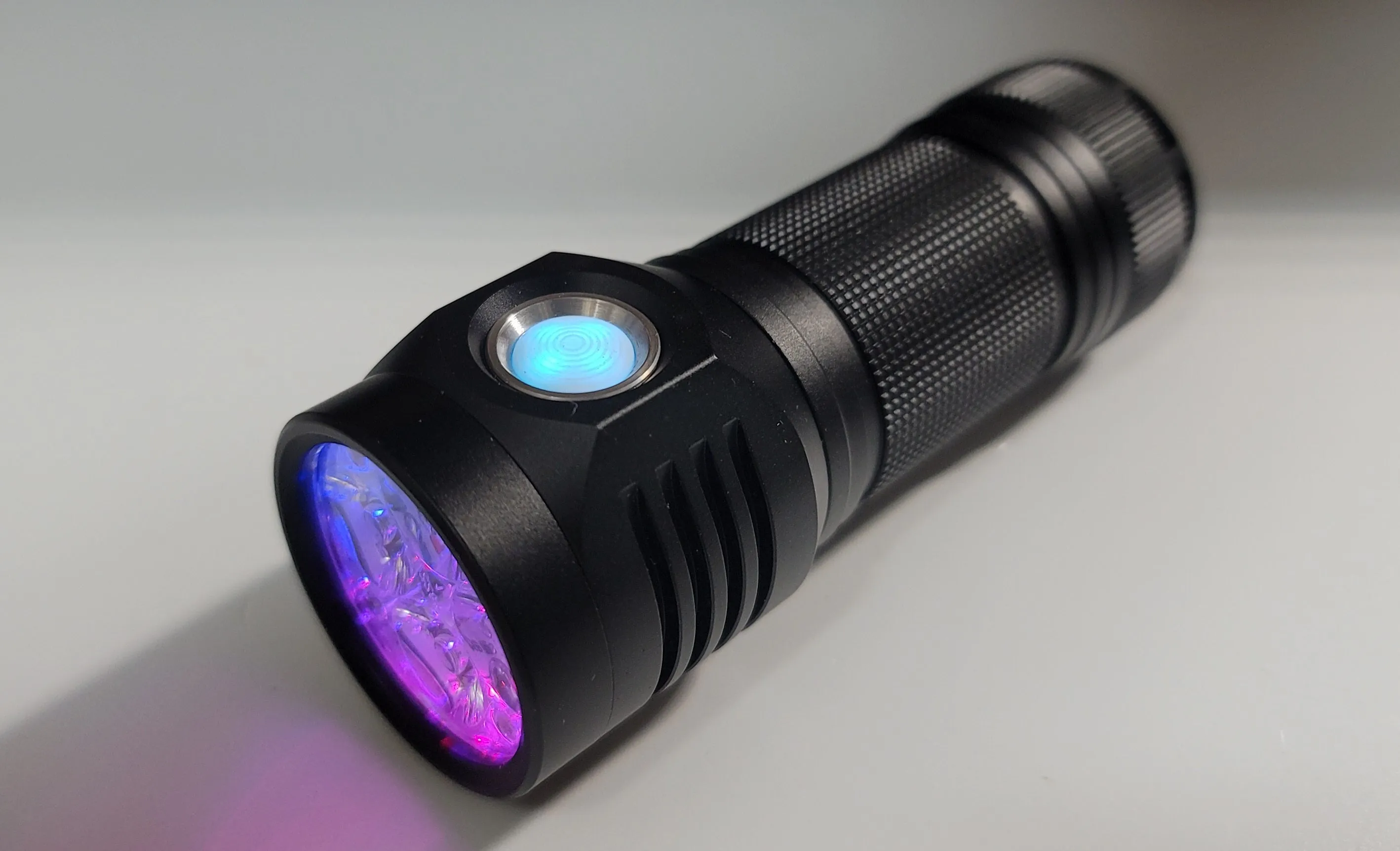

EMISAR D4SV2 OSRAM W2.1/W2.2 OPTION

Emisar D4SV2 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing.

Works with high drain unprotected 26650 cell under 69mm.

My D4SV2 are built with the lighted switch option by default cost is added to the total price of the D4SV2. Hank doesn't include the lighted switch options.

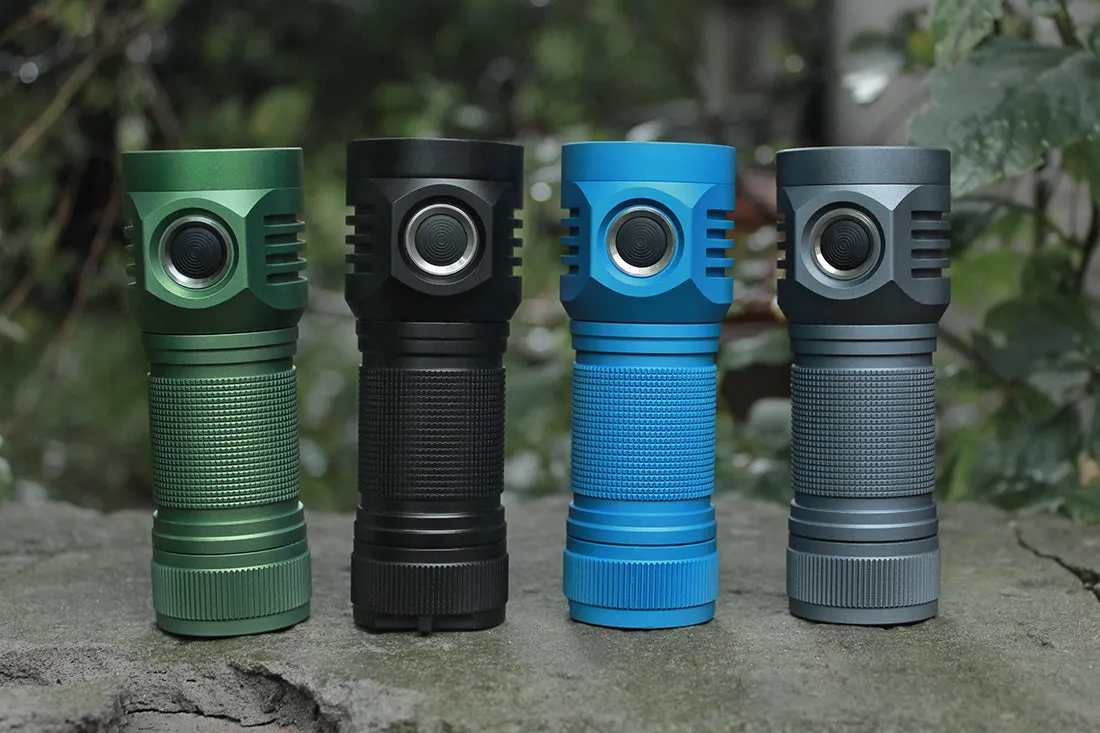

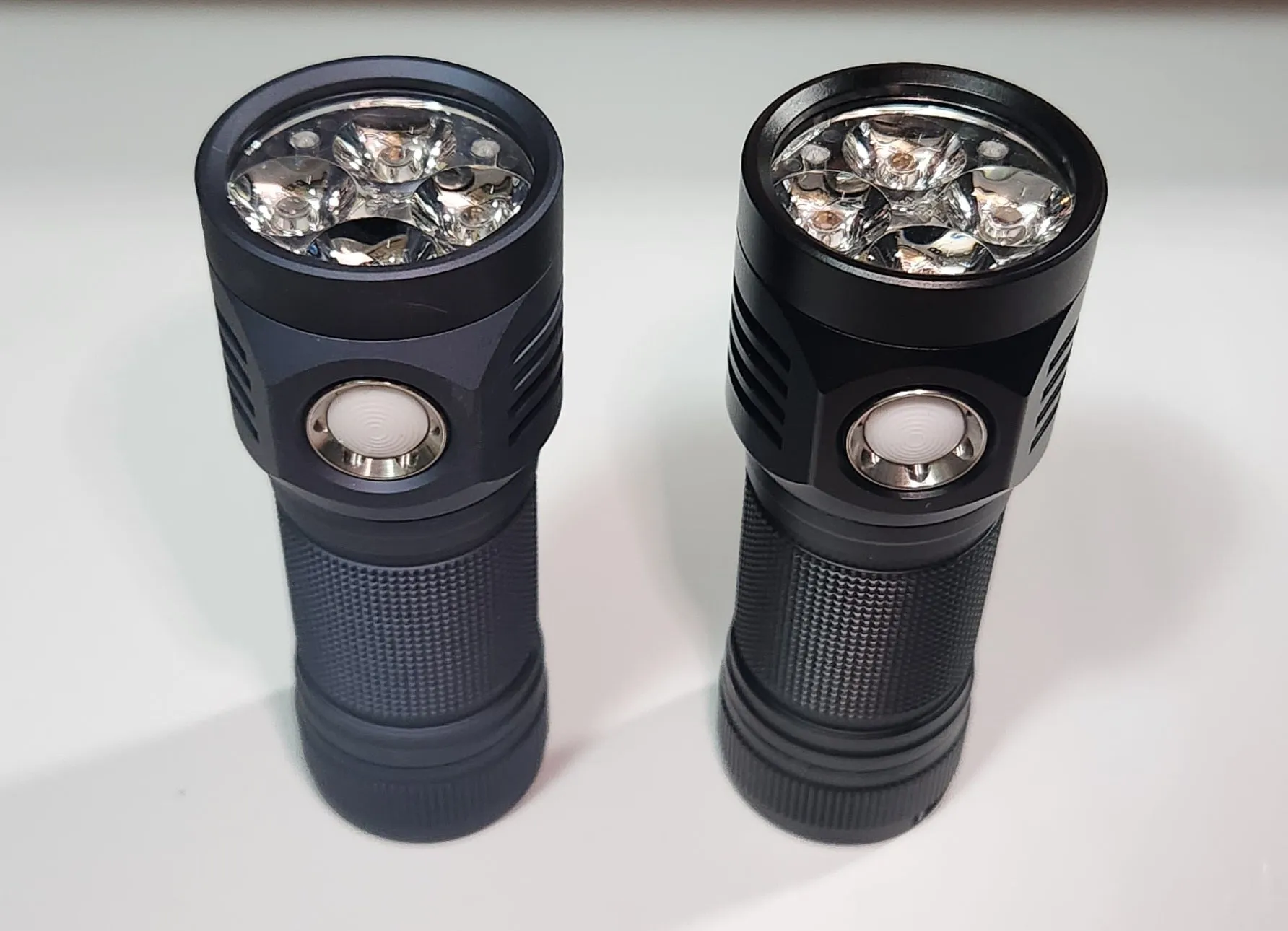

BODY COLORS:

BLACK

GRAY

CYAN

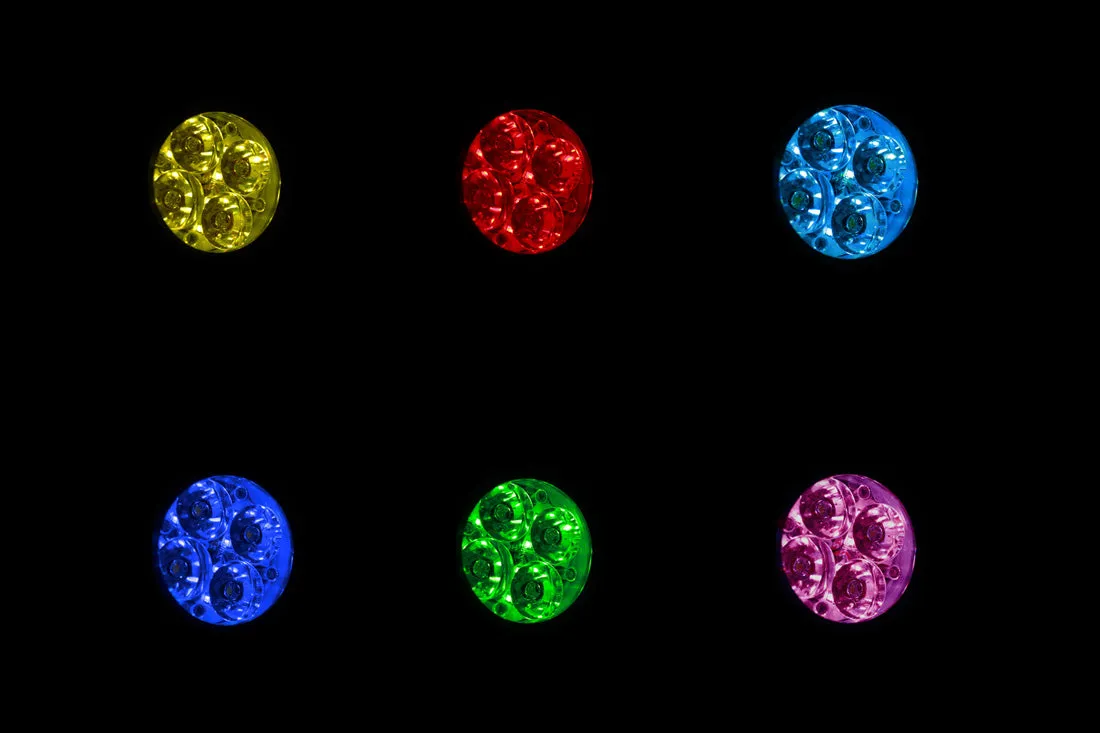

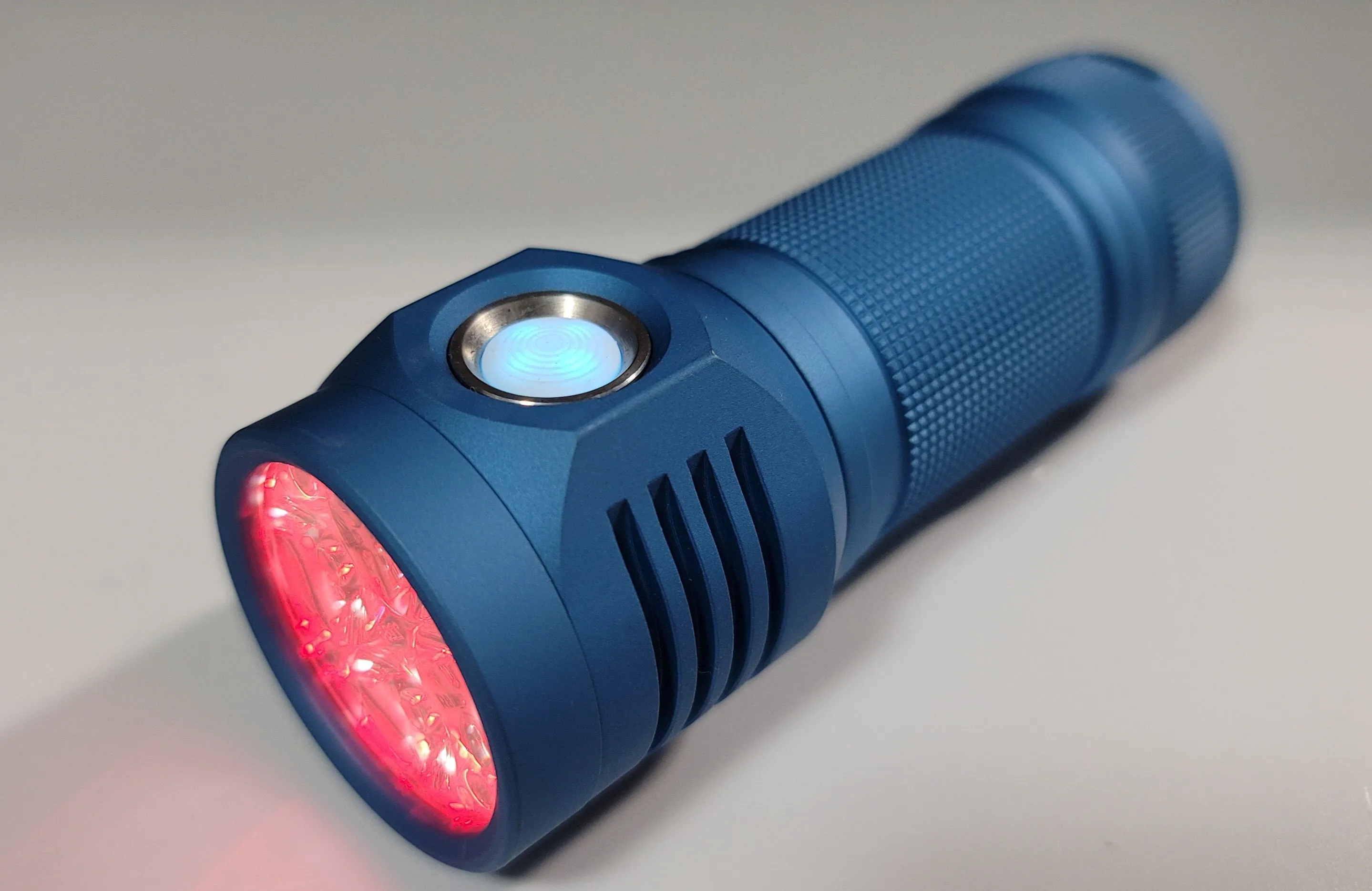

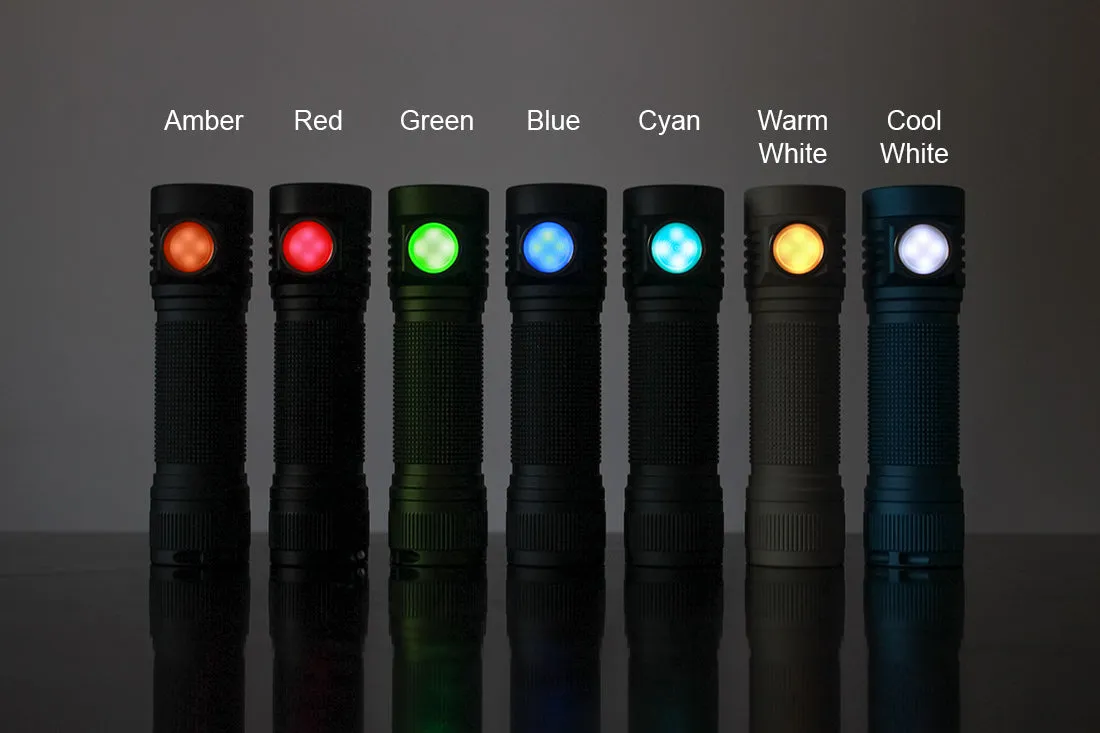

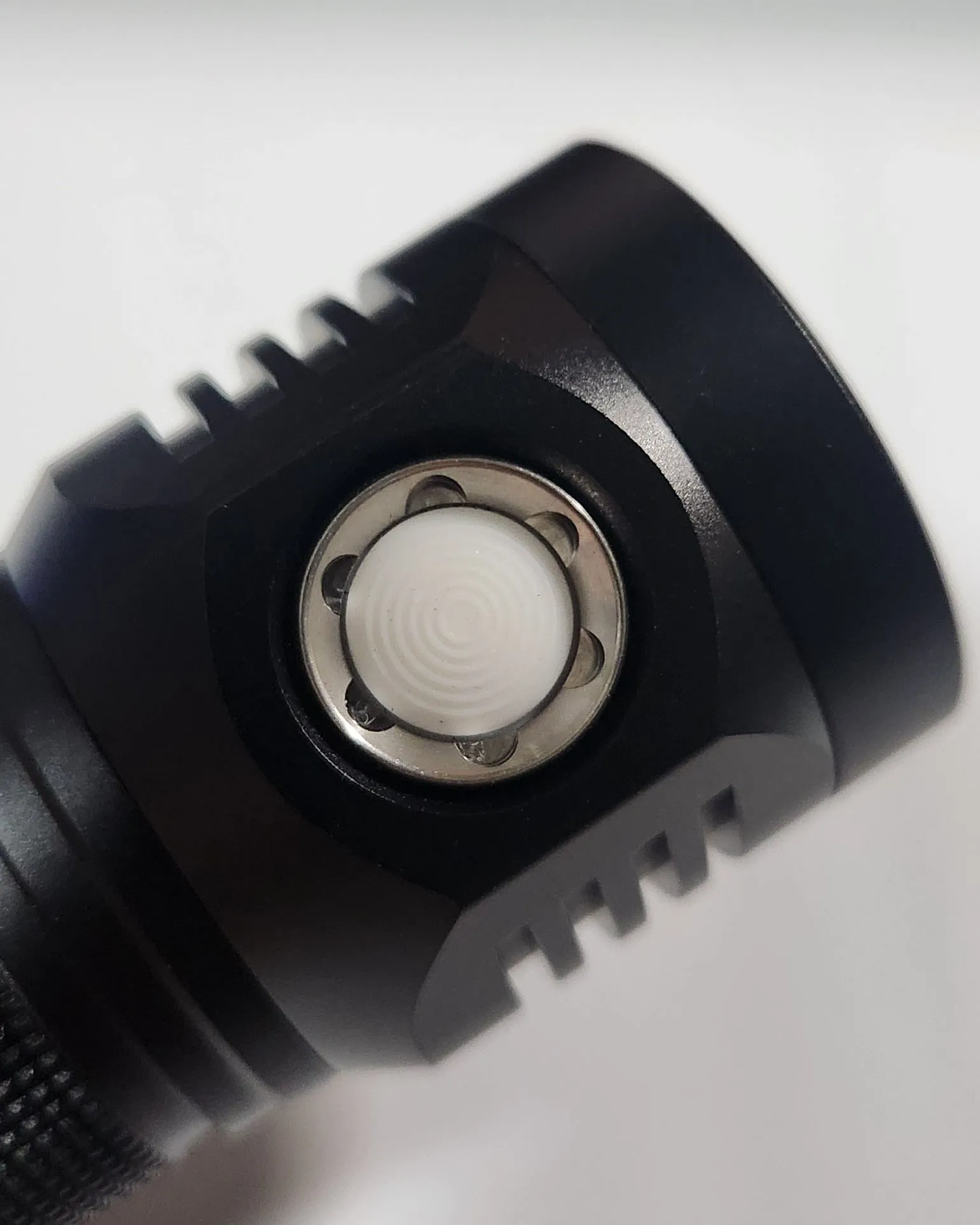

LIGHTED SWITCH:

ALL COLORS RGB

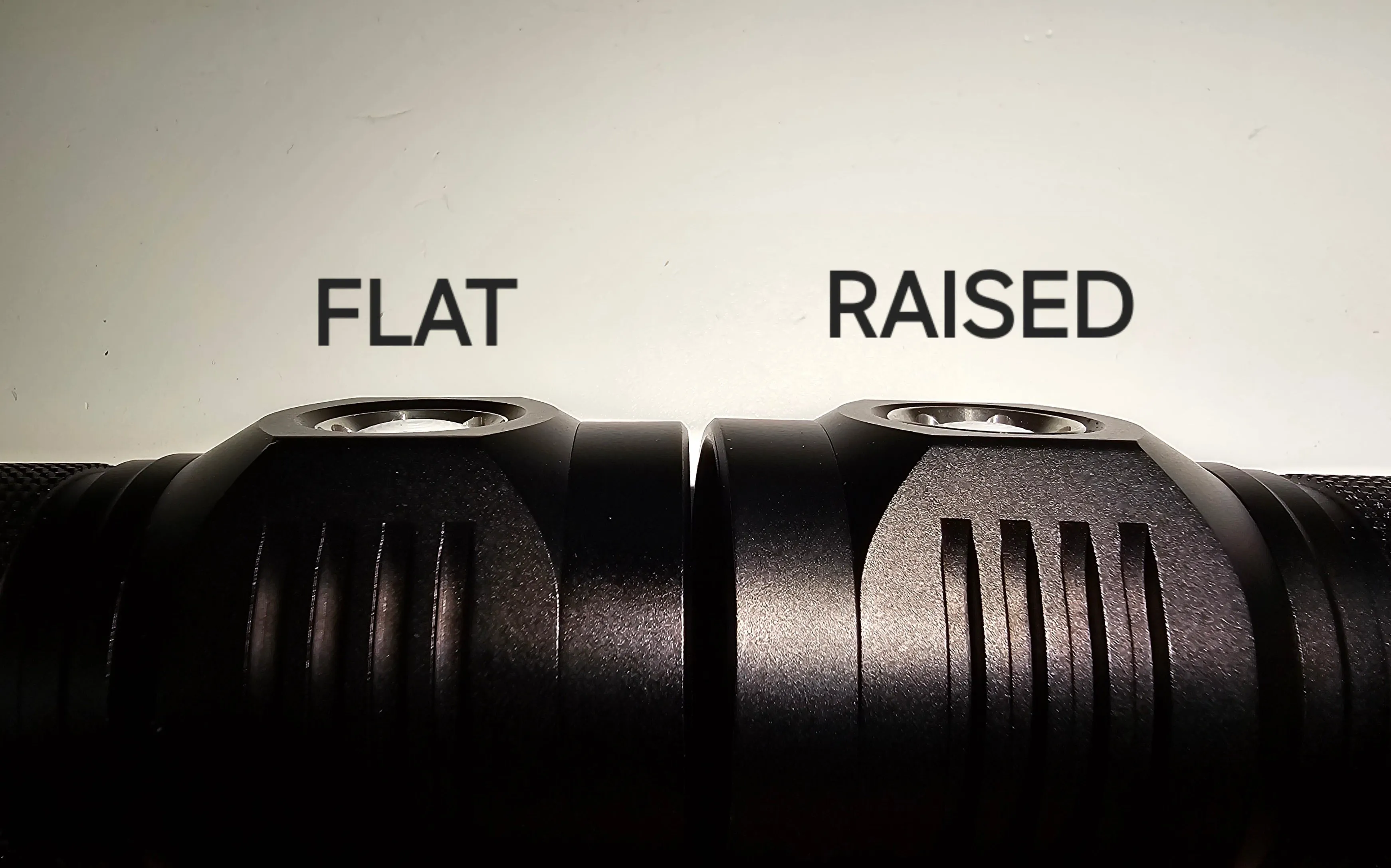

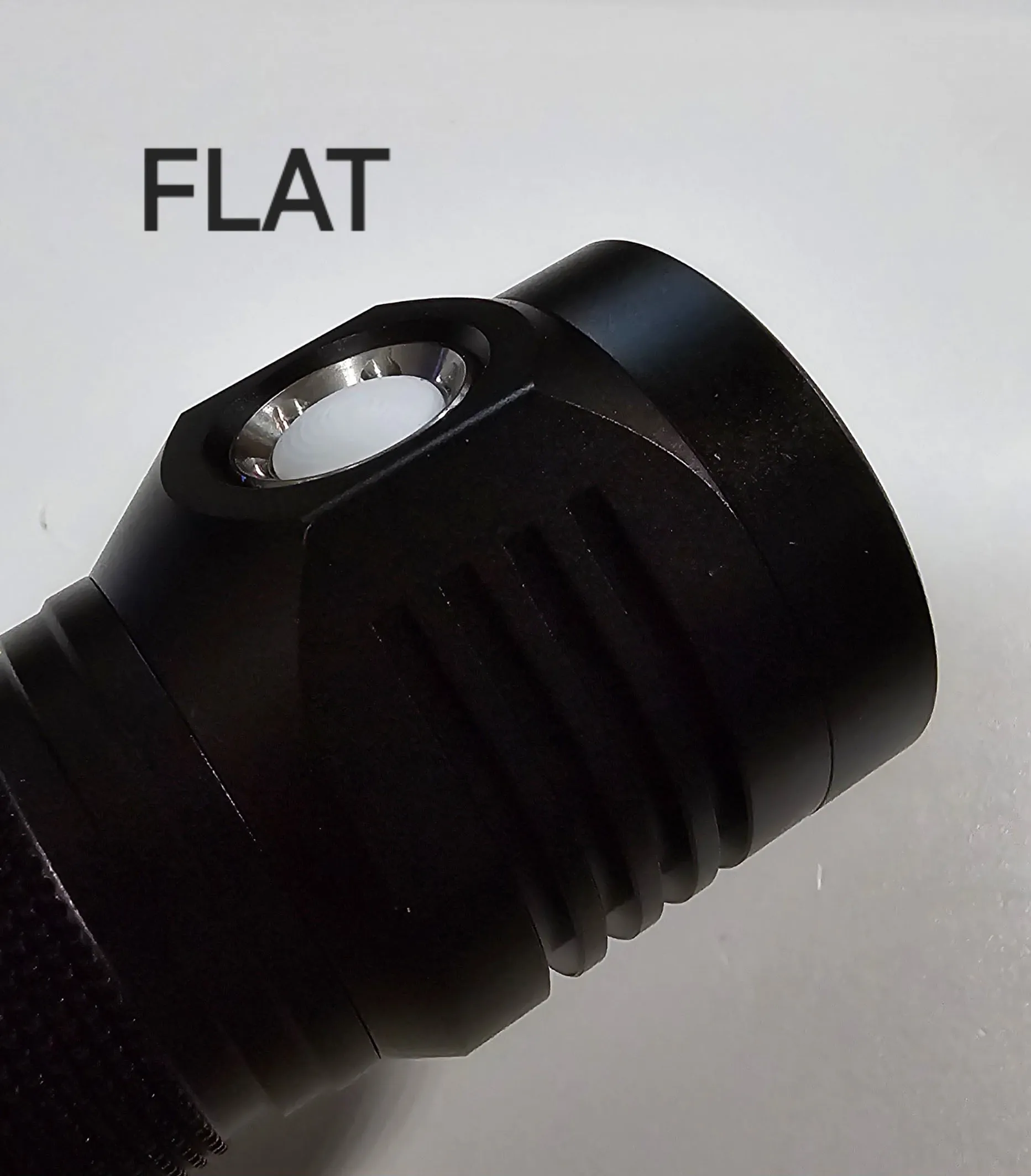

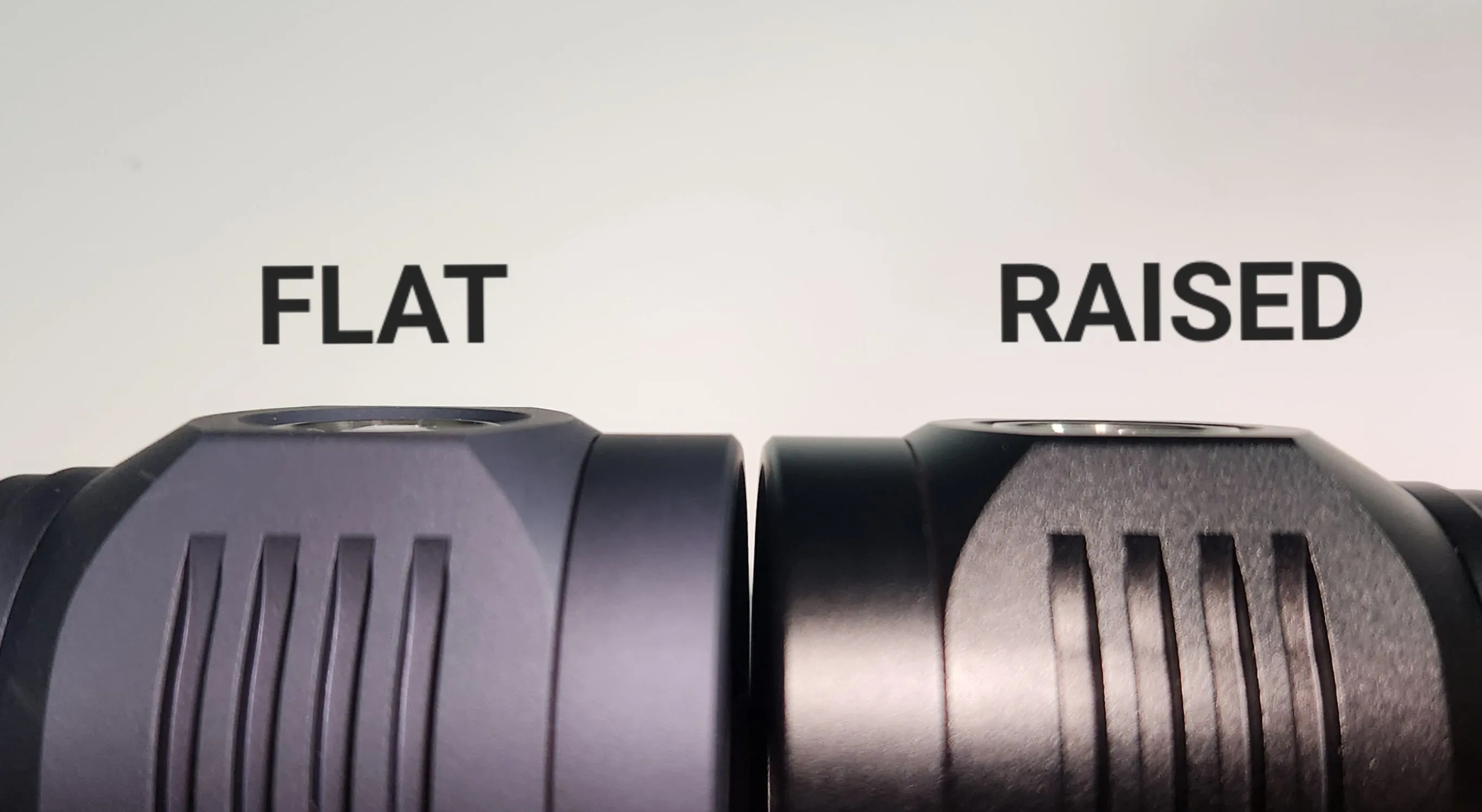

SWITCH RING:

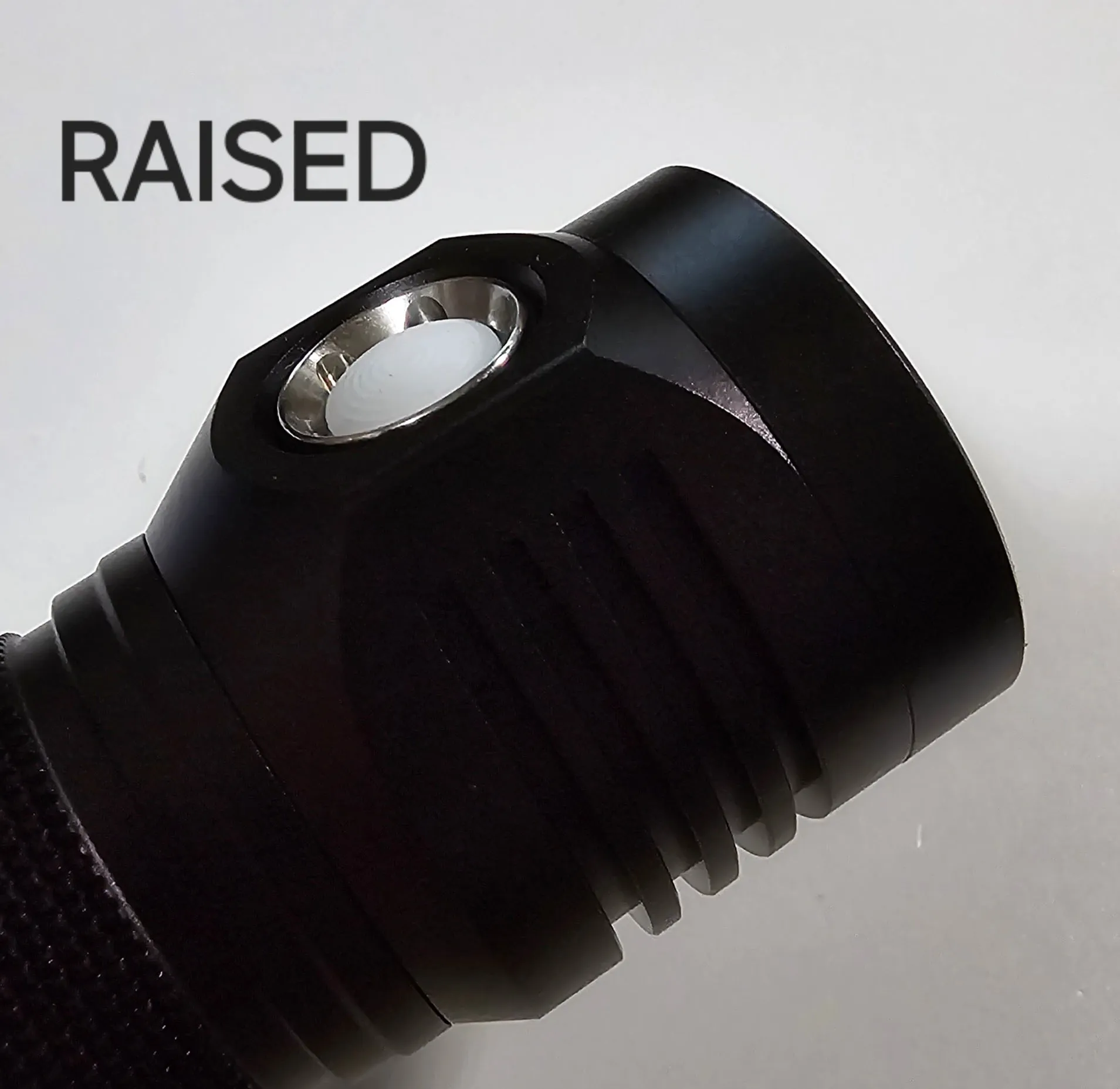

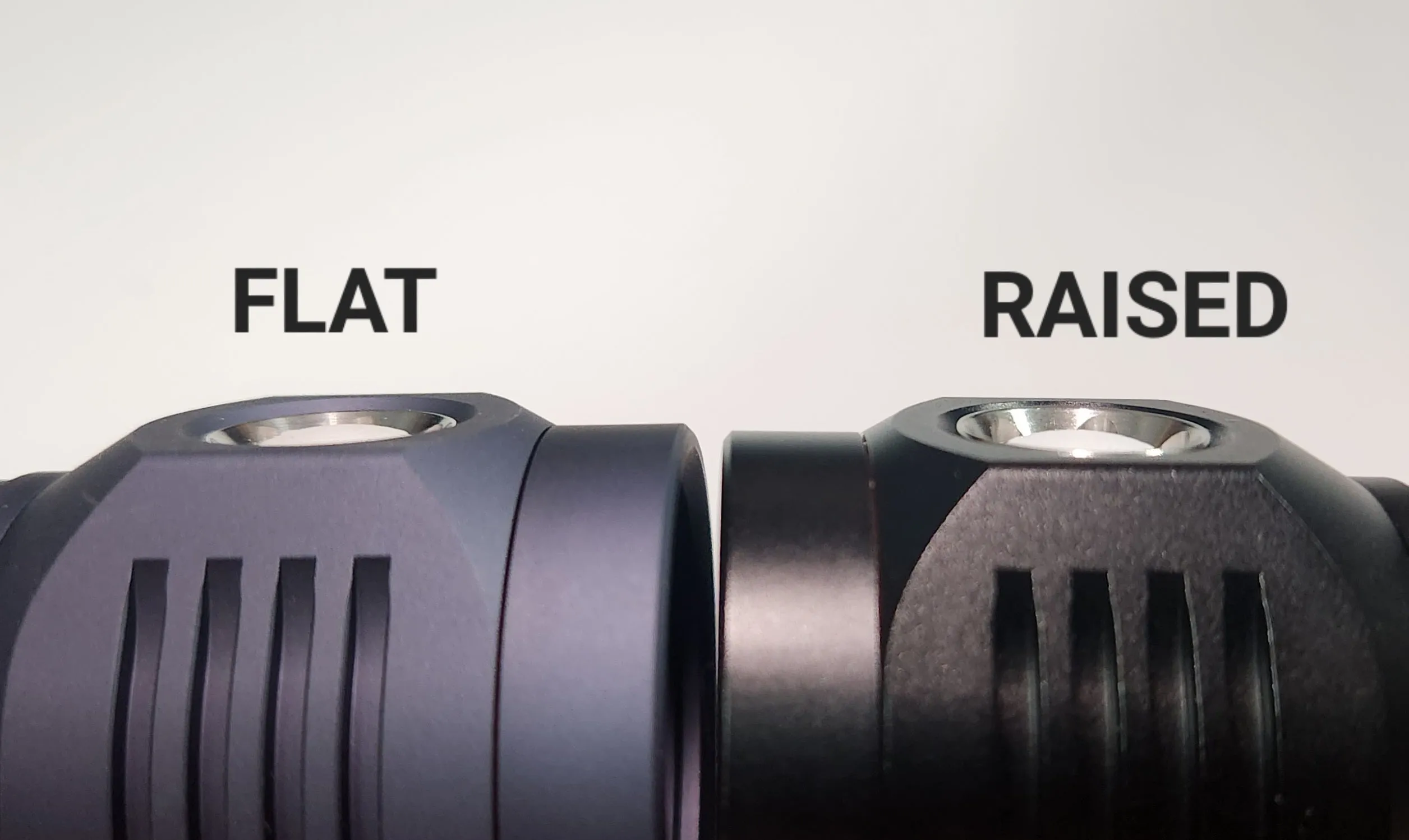

NEW! THREADED FLAT OR RASIED RINGS!

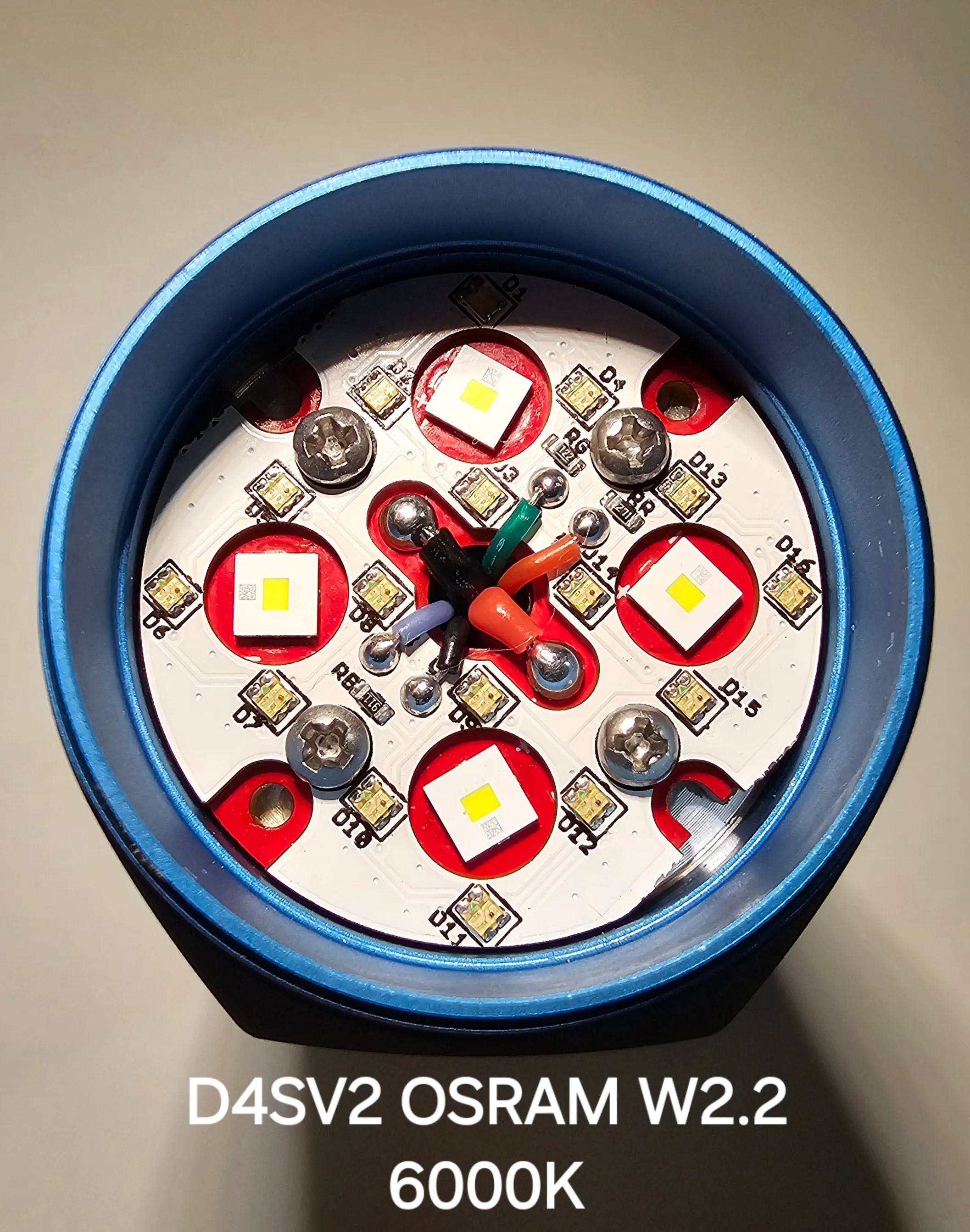

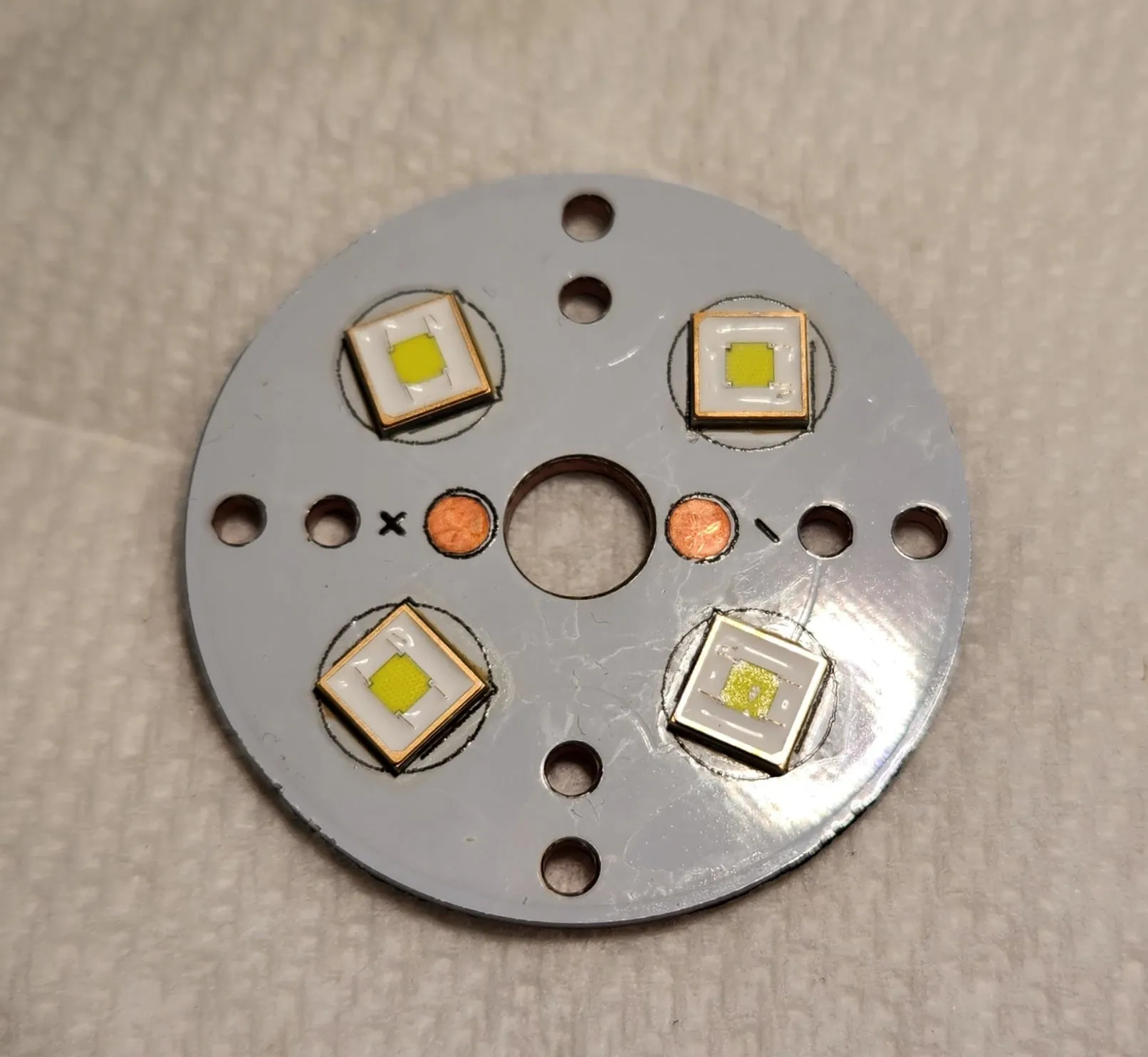

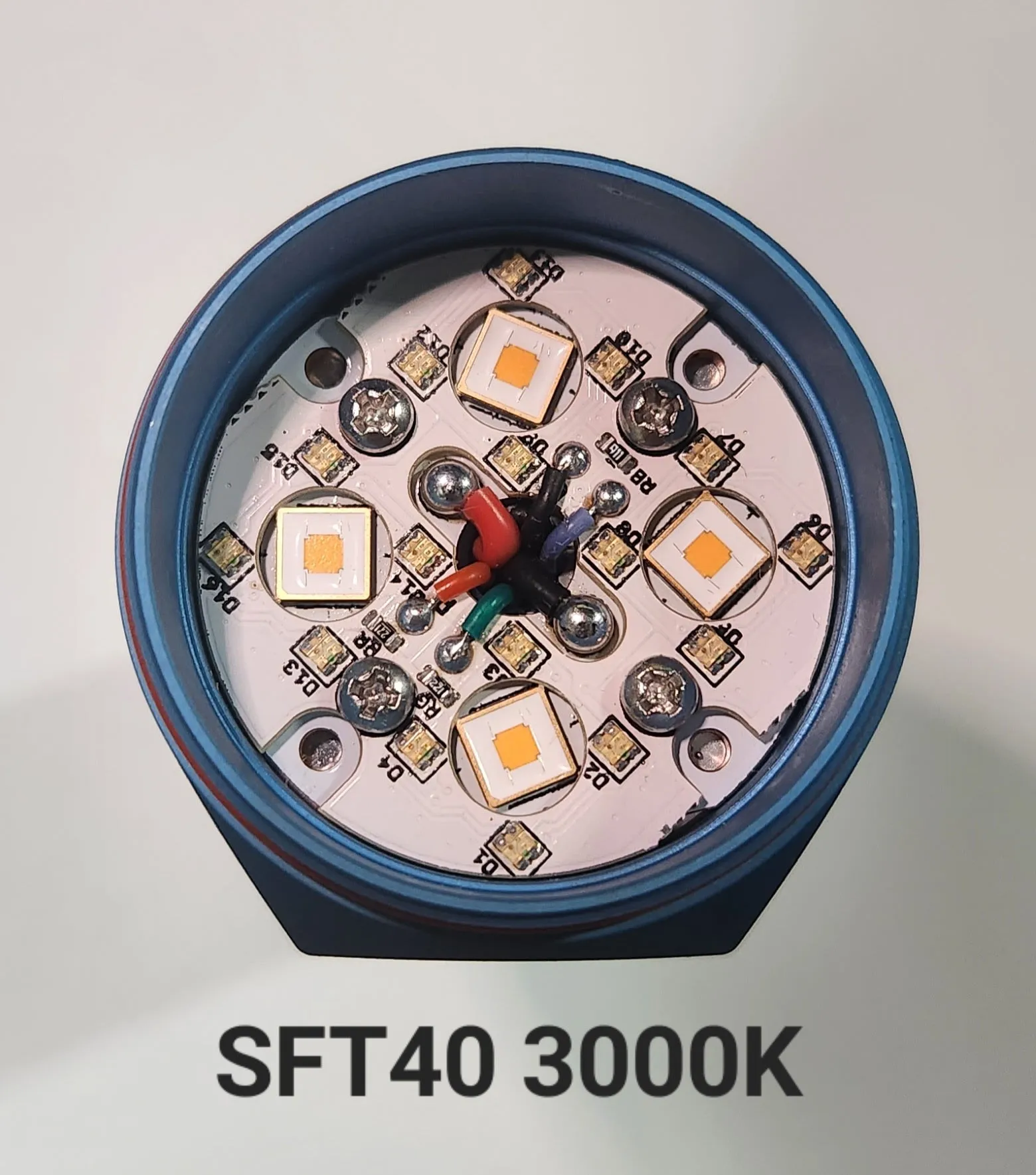

EMITTER OPTION:

OSRAM W2.1 6000K KW CULNM1.1TG

OSRAM W2.2 6000K KW CULPM1.1TG

OUTPUT LUMENS:

4600-5000LM

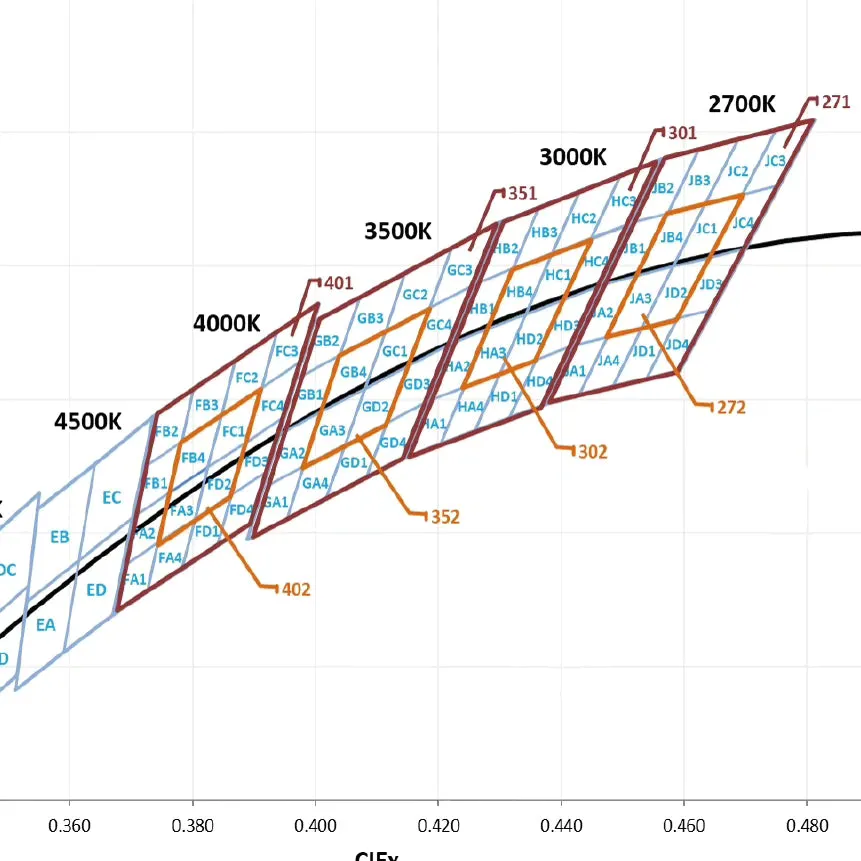

COLOR TEMP:

6000K

INCLUDED OPTIONS:

MAGNETIC CAP

EXTRA ORINGS

LANDYARD

ANDURIL 2 UI INSTRUCTIONS

OPTIONAL SS BEZEL >>>

RECCOMENDED BATTERY:

20A 25560 BATTERY OR THE VAPCELL 26800 BATTERY TUBE (BATTERY NOT INCLUDED)

 Features:

• CNC machined from aircraft-grade aluminum

• Efficient LEDiL quad optic

• Double of triple the candela of D4 (depending on LEDs of D4)

• Anti-reflective coated glass lens

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

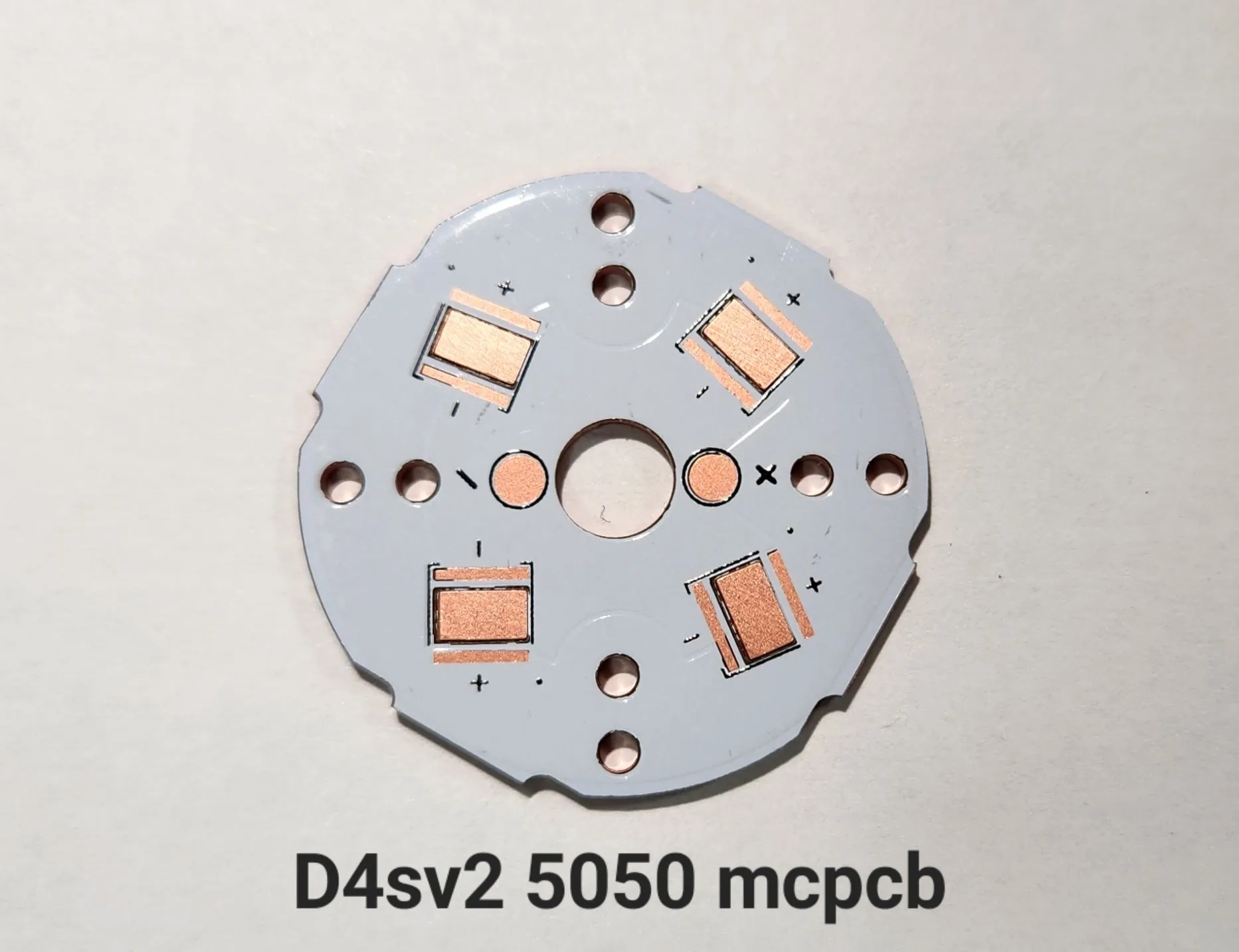

• Temperature step-down • More mass and MCPCB surface compared to D4

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Powered by a high drain 26650 cell (not included)

• Dimensions: 105mm(length) * 39mm(head) * 32mm(body)

OTF lumen output and candela at start-up

XP-G2 S4: 3300lm / 40,000cd

Nichia 219C: 3000lm / 20,000cd

XP-L HI: 4300lm / 45,000cd

XP-L HD: 5100lm / 27,000cd

SST-20 6500K: 4200lm / 58,000cd

SST-20 5000K: 4000lm / 55,000cd

SST-20 4000K/3000K 95CRI: 3000lm / 41,000cd
