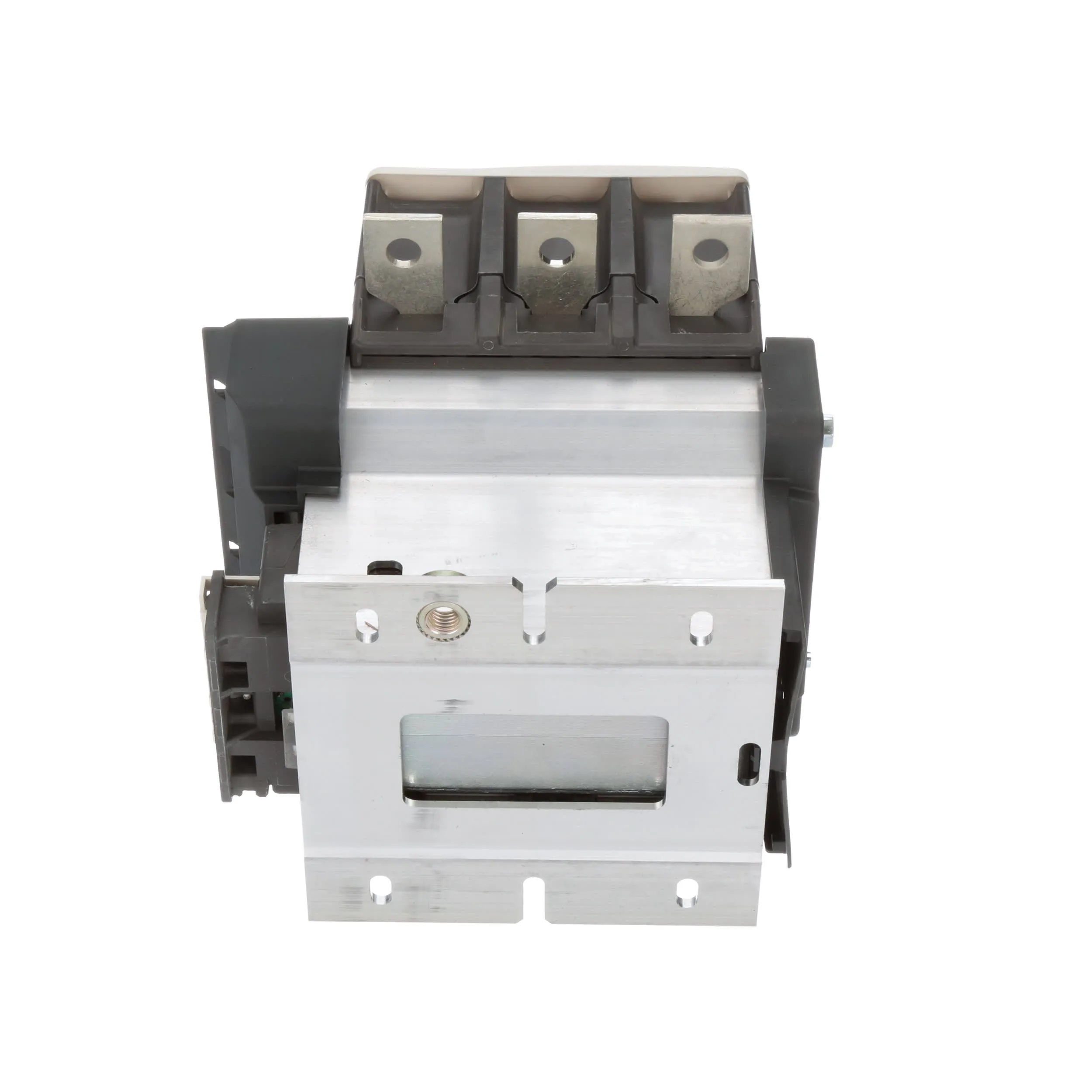

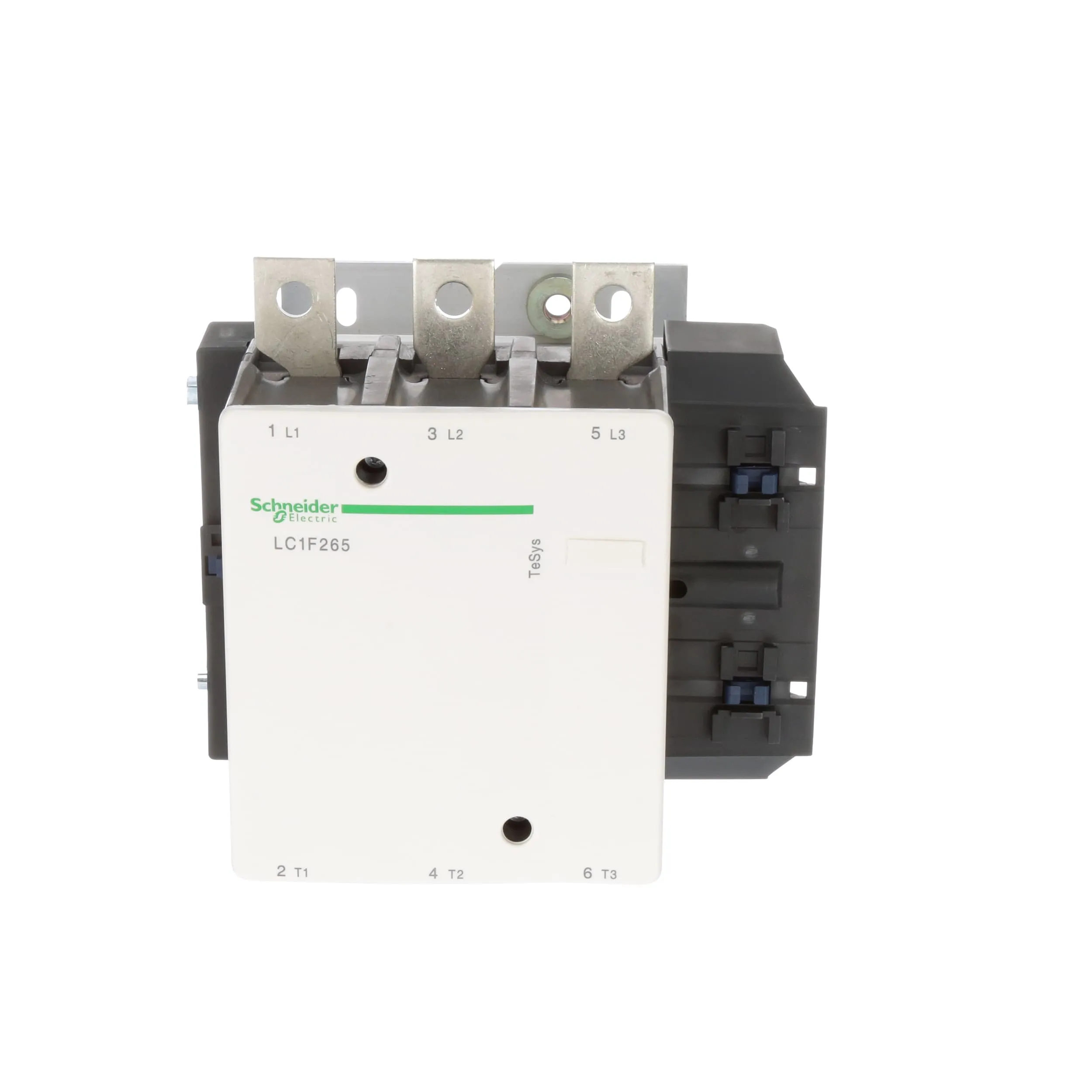

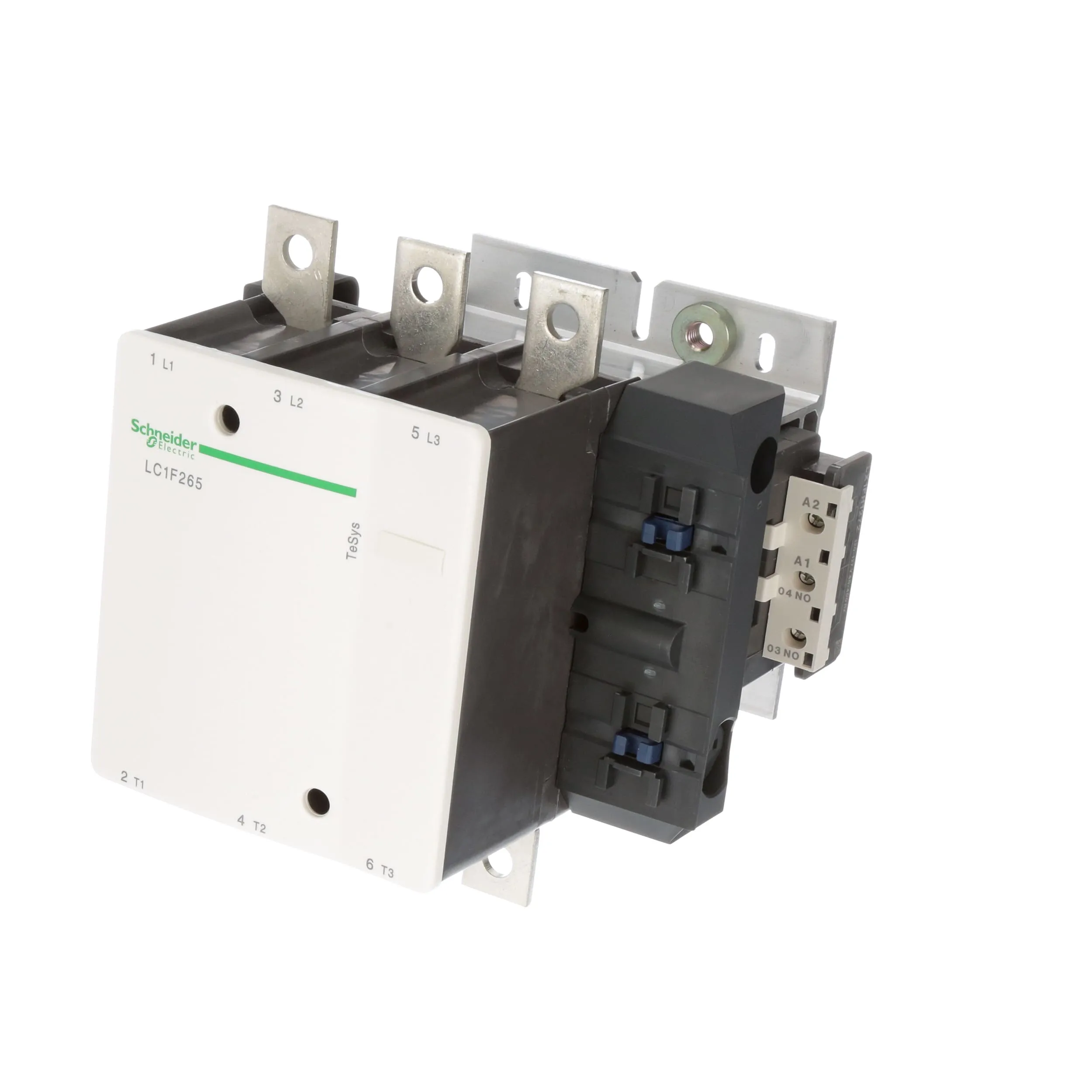

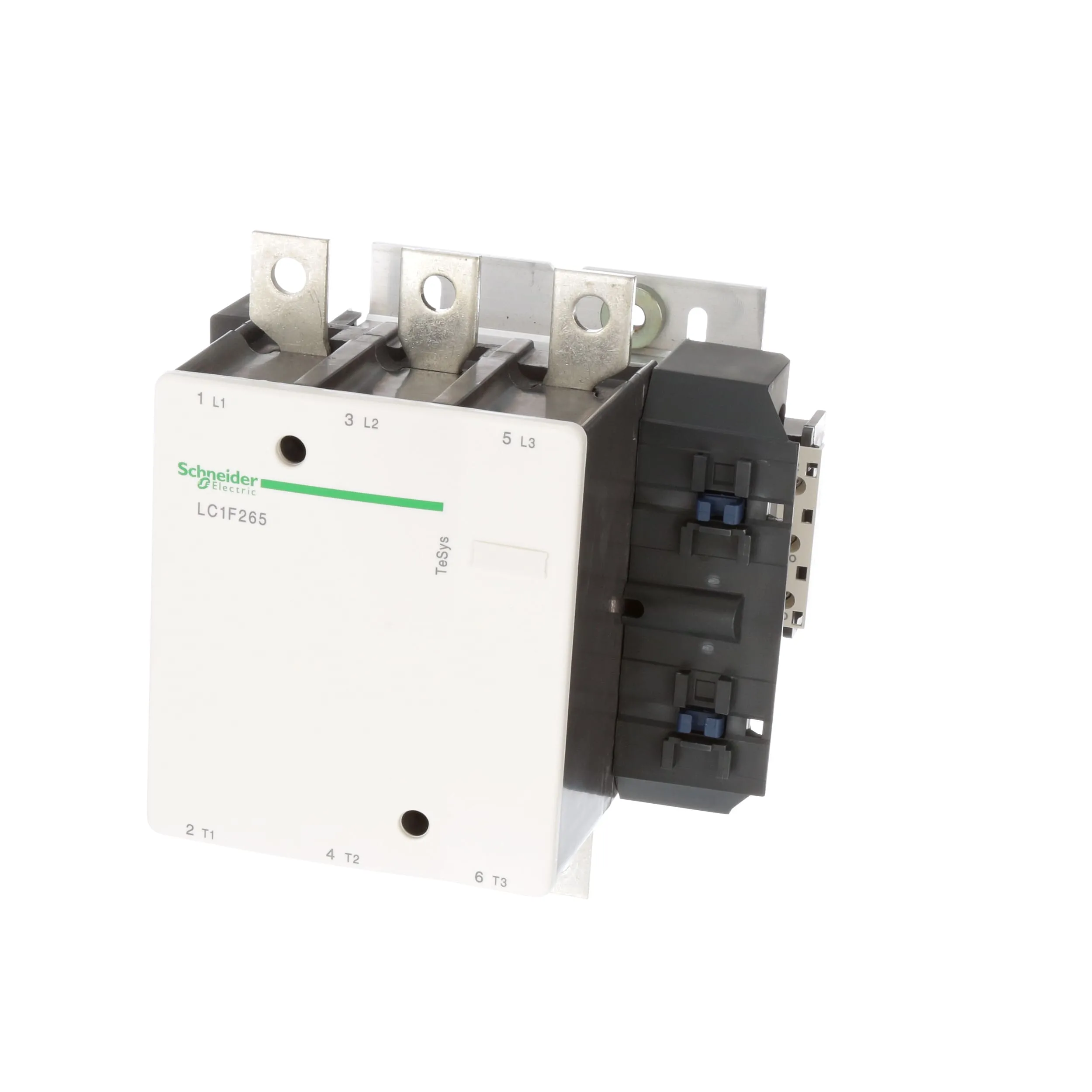

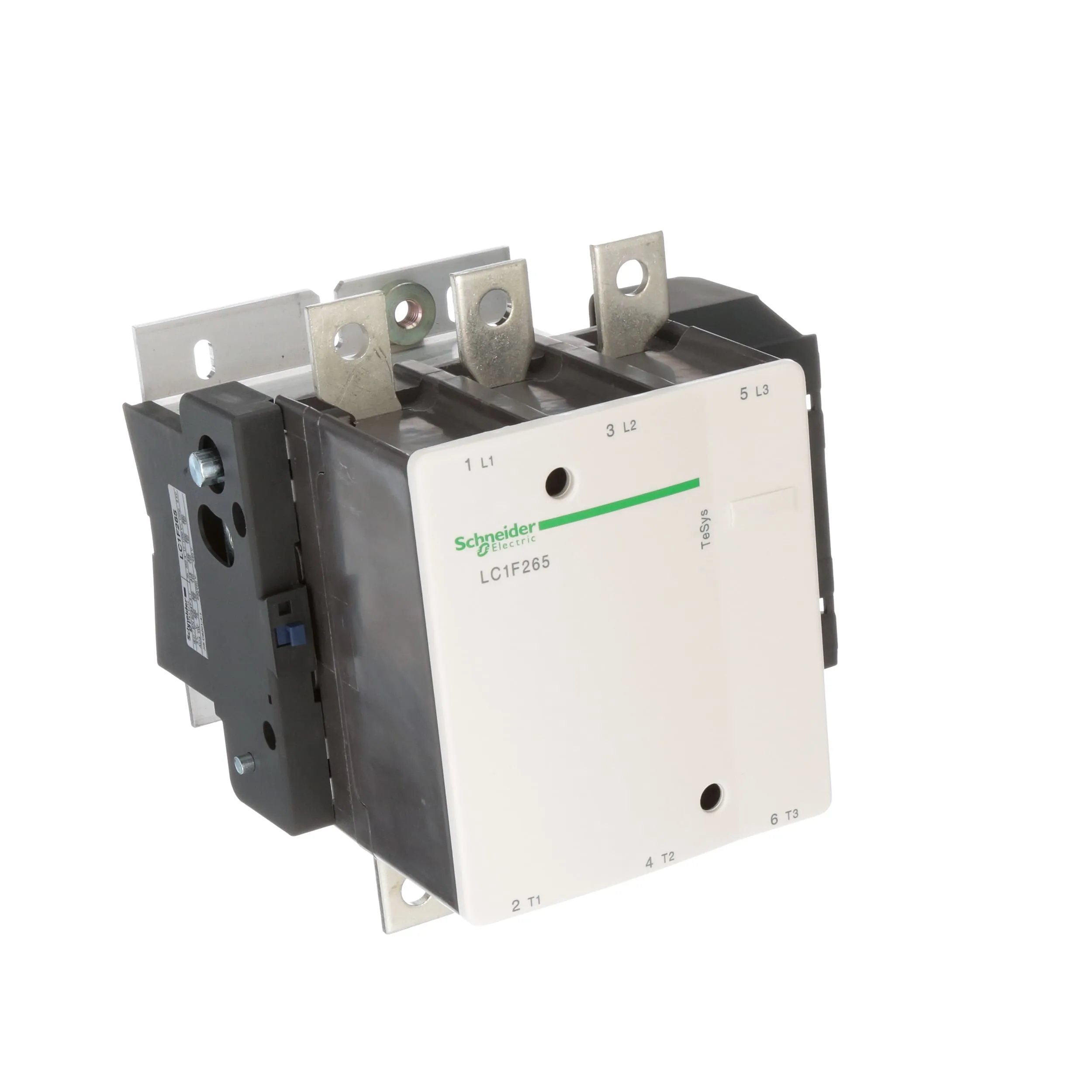

Name: Schneider Electric LC1F265G7
SKU: 609179

Product Details ＋

Product Attribute	Attribute Value
Contact Current Rating	265 A
Depth	0.118" (3mm)
Dimensions	201.5 x 213 x 203 mm
Enclosure Type	Open
Horsepower Rating	175 HP
Length	7.933" (201.5mm)
Maximum Operating Temperature	55 C
Minimum Operating Temperature	-5 C
Mounting Type	DIN Rail Mounted ; Panel Mounted
Number of Poles	3
Power Rating	140 kW
Primary Type	Contactor
Series
Size	201.5 L x 203 H x 213 W mm
Standards	EN 60947-4-1 ; IEC 609474-1 ; IEC 60947-4-1 ; JEM 1038
Temperature Operating Range	-5 to 55 C
Terminal Type	Box Clamp
Type	Contactor
UPC Code	785901079811
Voltage Rating	Up to 1000 V, 127 VAC @ 40 to 400 Hz (Coil)
Voltage, Control	120 VAC
Width	8.386" (213mm)

Overview

Schneider Electric TeSys F Series – High-powered 3 Pole Contactors Suitable for Motor Control up to 1000 A and Power Switching up to 2600 A:

TeSys F is a range of high current contactors from 115 A to 1000 A designed for AC-3 applications and from 200 A to 2600 A for AC-1 applications. TeSys F series of contactors are specifically designed for the most demanding motor and power switching applications.

Features:

TeSys F offers high performance in motor control & power switching applications

Proven reliability with high mechanical and electrical durability

Combined with the LR9 electronic relay or GV7 motor circuit breaker, AC-3 contactors are the ideal motor starters offering quick & simple selection

Shared accessories across the range offers greater flexibility and reduced inventory

Withdrawable-type coils enable fast and easy maintenance

TeSys F contactors guarantee electrical coordination with fuses and circuit breaker offers

2 pole (400 A, 500 A & 630 A), 3 pole (115 – 2600 A) & 4 pole (115 A – 780 A) contactors

Pre-assembled star-delta motor starters (185-375 kW/440V AC), 3 pole AC-3 reversing contactors (115 A – 265 A) & 4 pole AC-1 change-over contactors (200-350 A)

Separate components and kits available for customer assembly of motor starters, reversing and change-over contactor solutions

Wide range of AC (40-400 Hz) and DC operating coils

Terminal connections suitable for connecting bus bars & cables

Wide range of common accessories to improve flexibility, functionality & safety

Complemented by Class10/20 LR9F type electronic thermal over-load relays and TeSys GV7-R circuit breaker for motor starter solutions

Suitable for switching of motors, lighting, heating, capacitors, auto-transformer starting, rotor circuits of slip-ring motors, etc.

Applications:

Machinery, HVAC, Hoisting, Mining & Metals, Oil & Energy, Utilities, Wind turbines, Photovoltaic, data centers, etc.

Switching of resistive, inductive, capacitive and DC circuits

Frequency drives and soft starters

Light distribution circuits, induction furnaces, etc.
